Window Glass - Liftgate: Notes

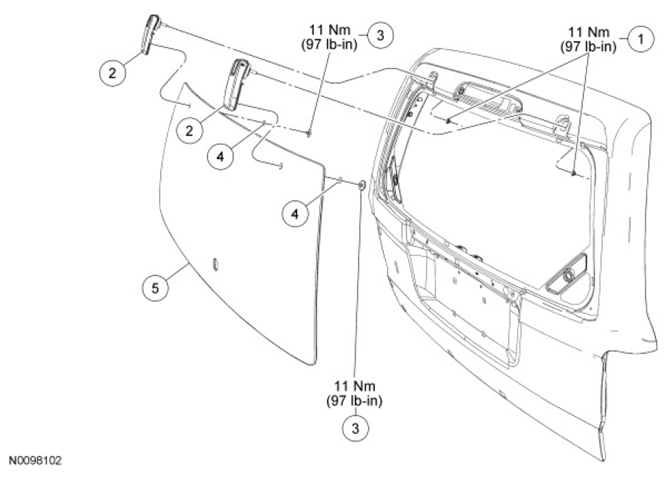

Fig 1: Liftgate Window Glass Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	N621906	Liftgate window glass hinge washers/nuts (2 required)
2	420A68 RH/420A69 LH	Liftgate window glass hinges
3	-	Liftgate window glass hinge screws (part of 420A68 RH/420A69 LH) (2 required)
4	-	Liftgate window glass hinge spacers (part of 420A68 RH/420A69 LH) (2 required)
5	422A12	Liftgate window glass
