Throttle Body: Notes

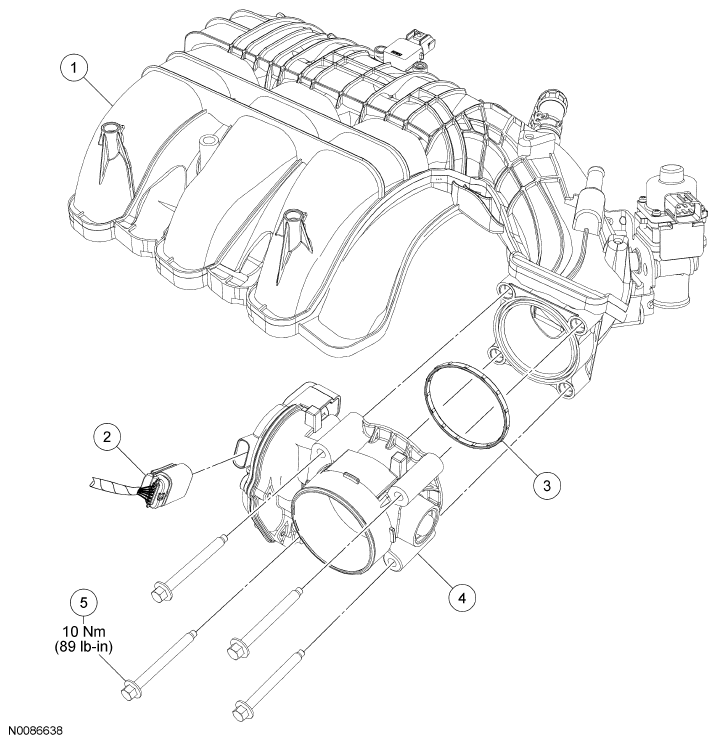

Fig 1: Throttle Body Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	9424	Intake manifold
2	14A464	Electronic throttle control electrical connector
3	9F991	Throttle Body (TB) gasket
4	9E926	TB
5	W500305	TB bolt (4 required)
