Special Tool(s)

SPECIAL TOOLS

G07439068
 Pressure Gauge, Valve/Clutch Spring
303-006 (TOOL-6513-DD) or equivalent
NOTE: Refer to the appropriate Engine article for the specification.
  1. Use the Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.

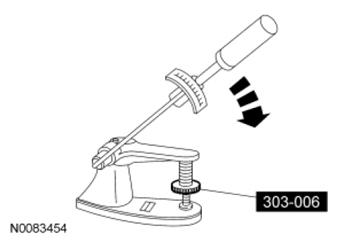

    Fig 1: Checking Valve Spring For Correct Strength At Specified Valve Spring Length Using Valve/Clutch Spring Pressure Gauge
    G07439069Courtesy of FORD MOTOR CO.
