Piston Pin Diameter

NOTE: Refer to the appropriate Engine article for the specification.
  1. Measure the piston pin diameter in 2 directions at the points shown in illustration. Verify the diameter is within specification.

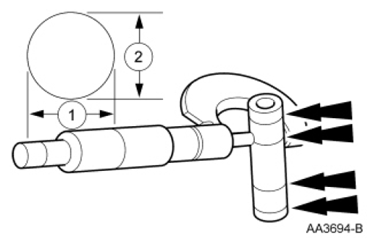

    Fig 1: Measuring Piston Pin Diameter In 2 Directions At Points
    G07439045Courtesy of FORD MOTOR CO.
