Connecting Rod Bushing Diameter

NOTE: Refer to the appropriate Engine article for the specification.
  1. Use a telescoping gauge to determine the ID of the connecting rod bushing, if equipped.

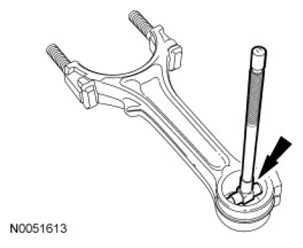

    Fig 1: Measuring ID Of Connecting Rod Bushing Using Telescoping Gauge
    G07439048Courtesy of FORD MOTOR CO.
  2. Measure the telescoping gauge with a micrometer. Verify the diameter is within specification.

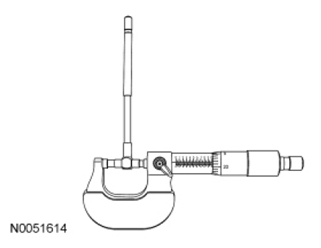

    Fig 2: Measuring Telescoping Gauge Using Micrometer
    G07439049Courtesy of FORD MOTOR CO.
