Component Location Views

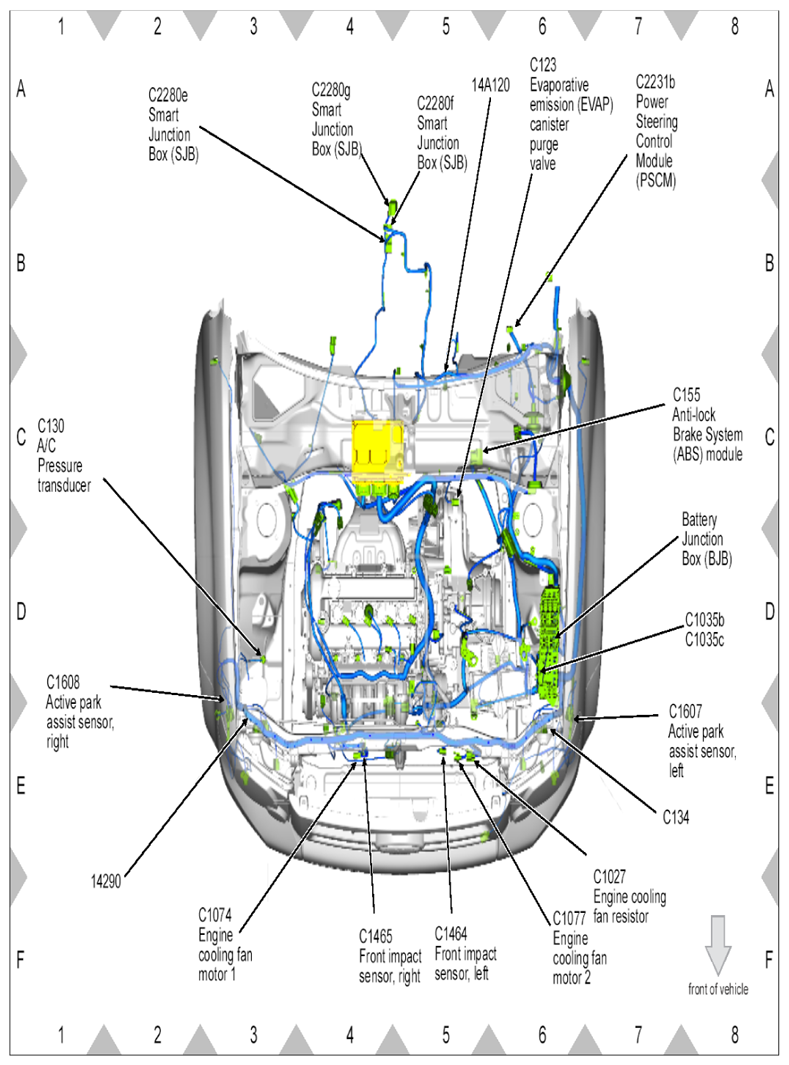

Fig 1: Identifying Engine Compartment Wiring Harness Connector Location (1 Of 5)
G07855424Courtesy of FORD MOTOR CO.

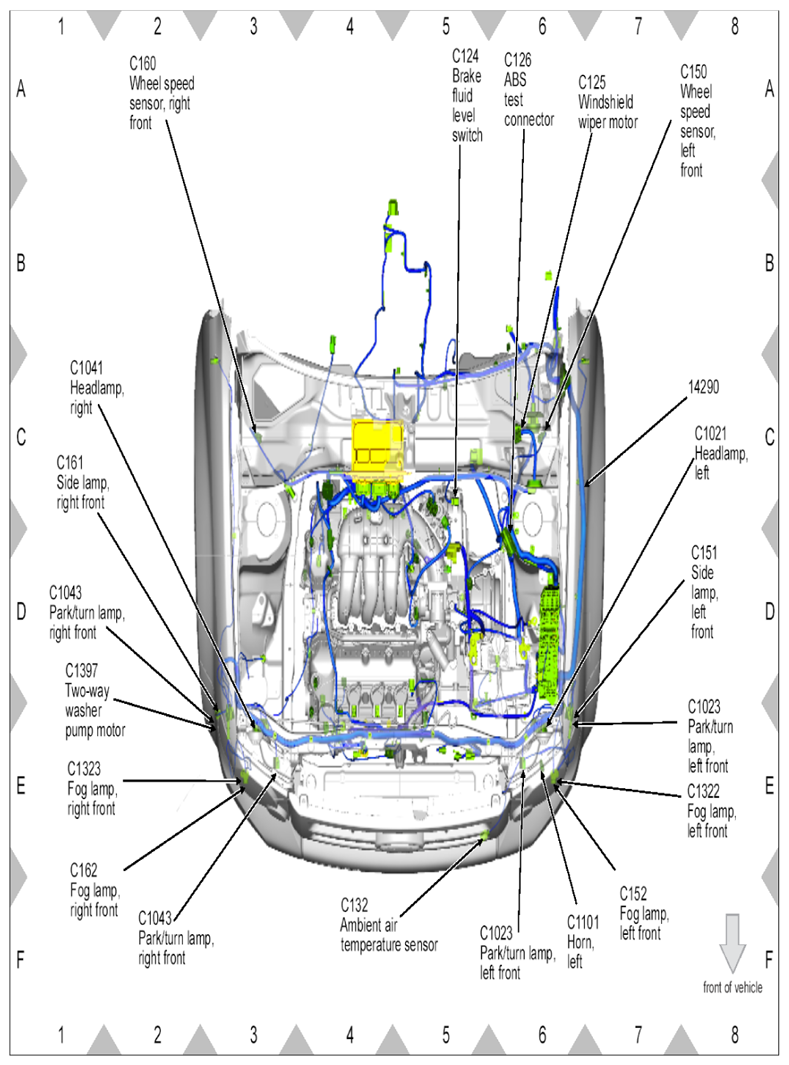

Fig 2: Identifying Engine Compartment Wiring Harness Connector Location (2 Of 5)
G07855425Courtesy of FORD MOTOR CO.

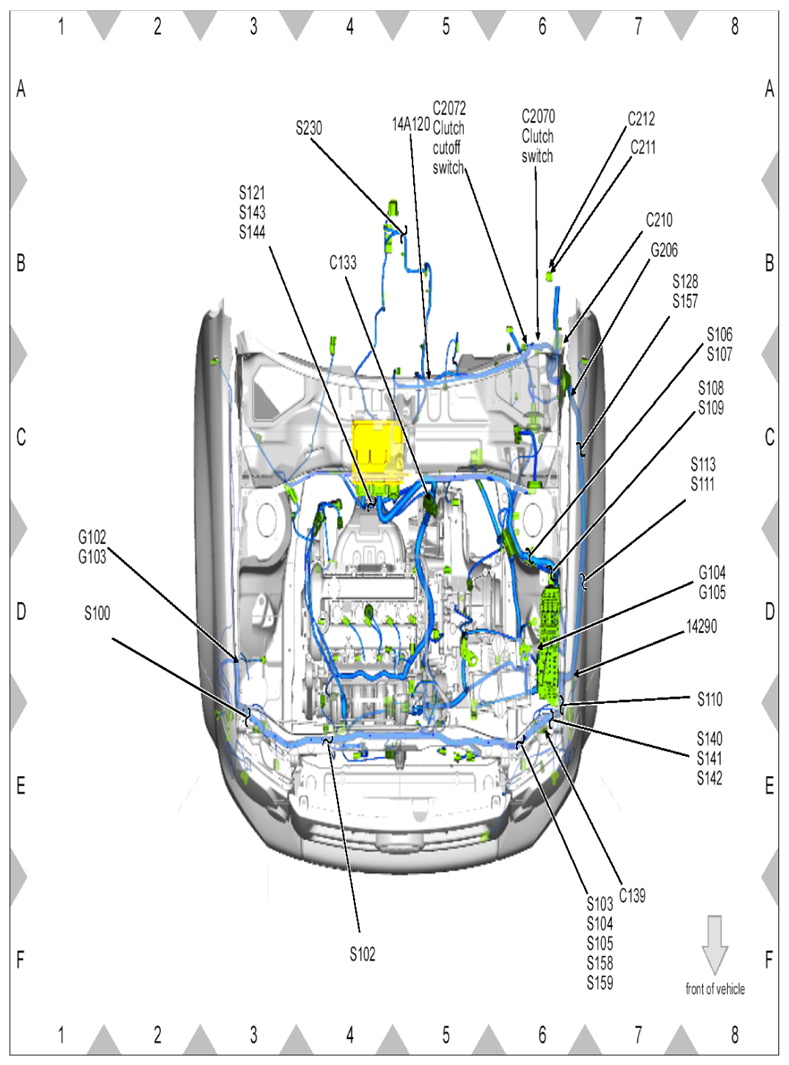

Fig 3: Identifying Engine Compartment Wiring Harness Connector Location (3 Of 5)
G07855426Courtesy of FORD MOTOR CO.

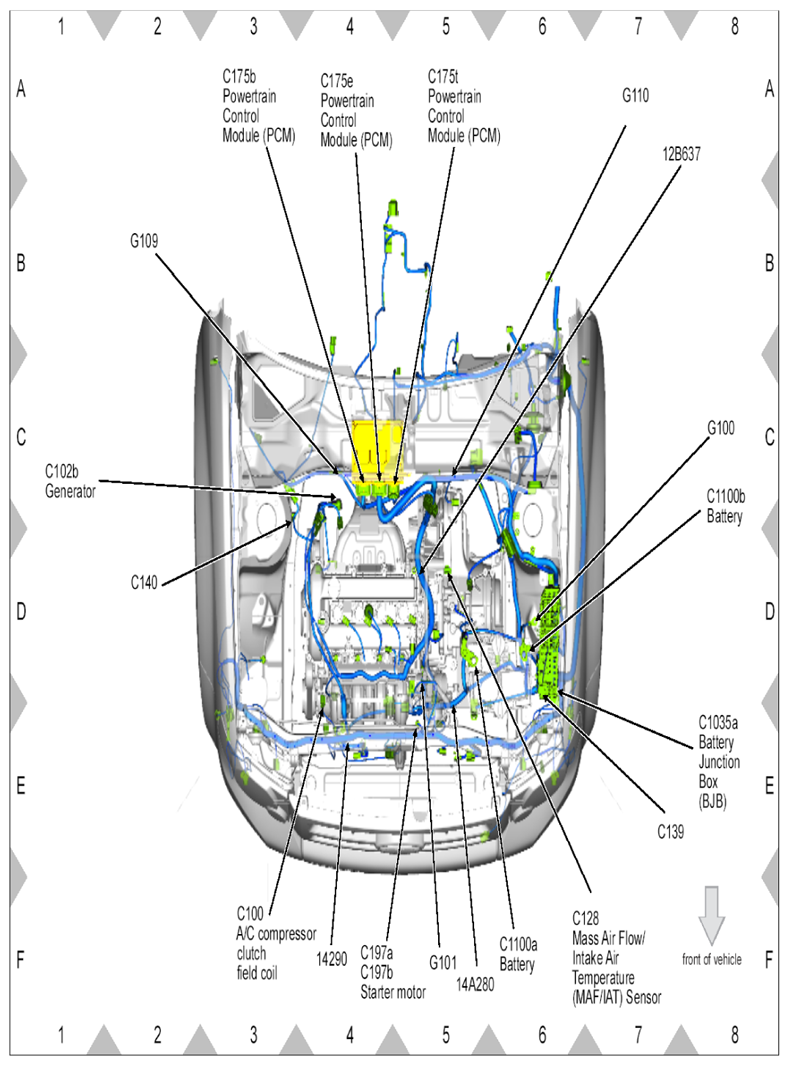

Fig 4: Identifying Engine Compartment Wiring Harness Connector Location (4 Of 5)
G07855427Courtesy of FORD MOTOR CO.

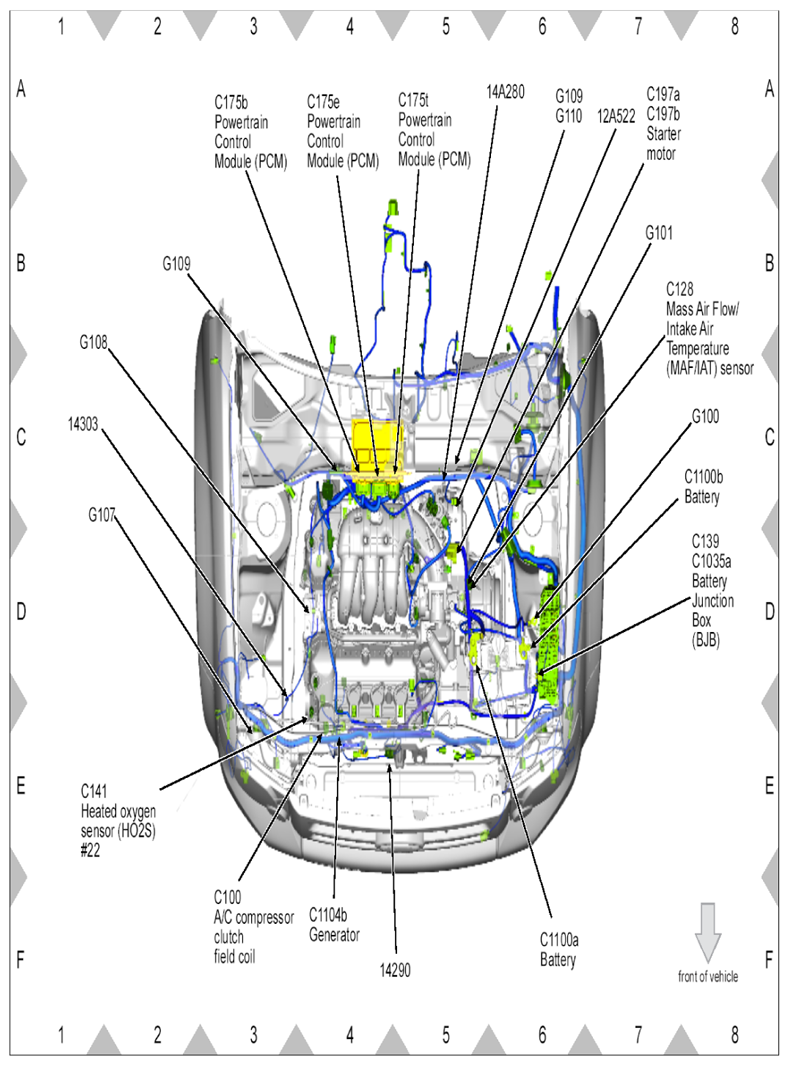

Fig 5: Identifying Engine Compartment Wiring Harness Connector Location (5 Of 5)
G07855428Courtesy of FORD MOTOR CO.

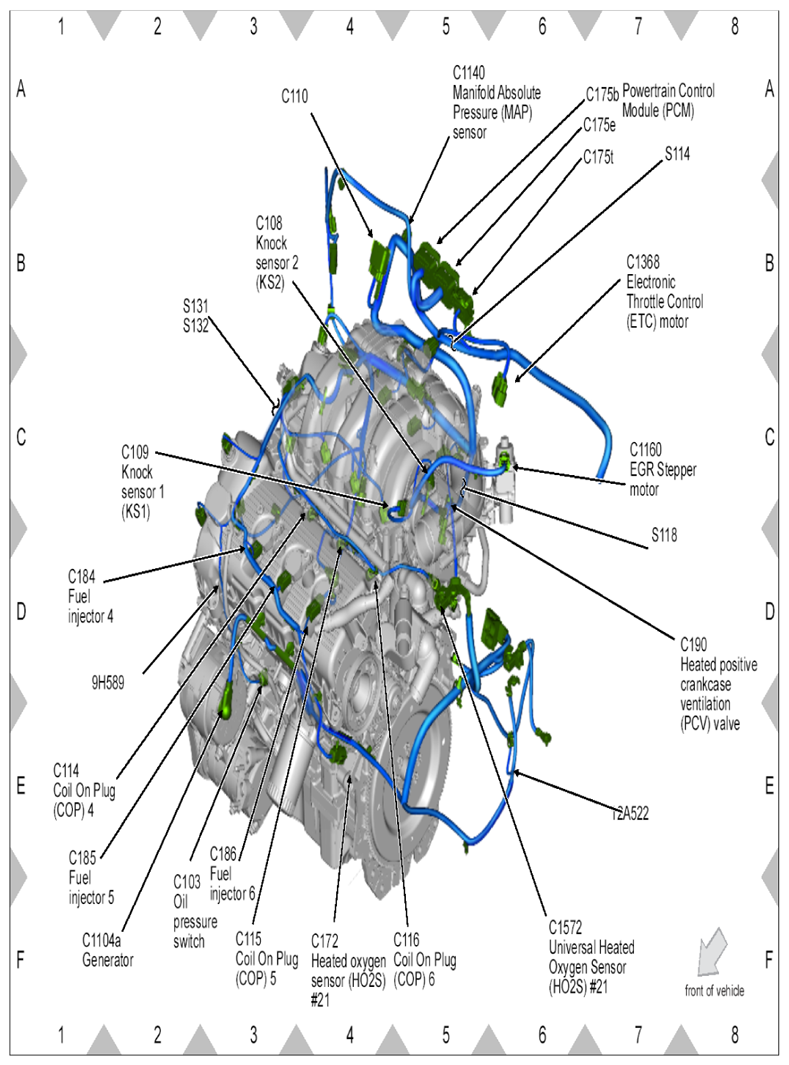

Fig 6: Identifying Engine Wiring Harness Connector Location (1 Of 7)
G07855429Courtesy of FORD MOTOR CO.

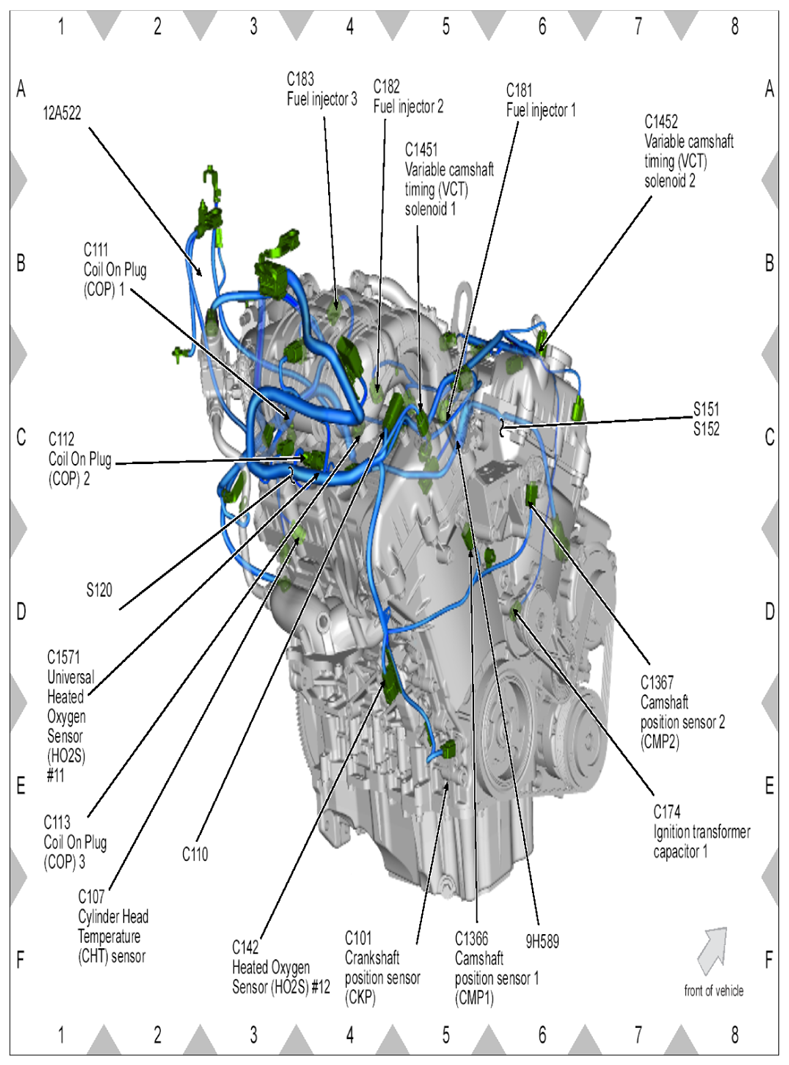

Fig 7: Identifying Engine Wiring Harness Connector Location (2 Of 7)
G07855430Courtesy of FORD MOTOR CO.

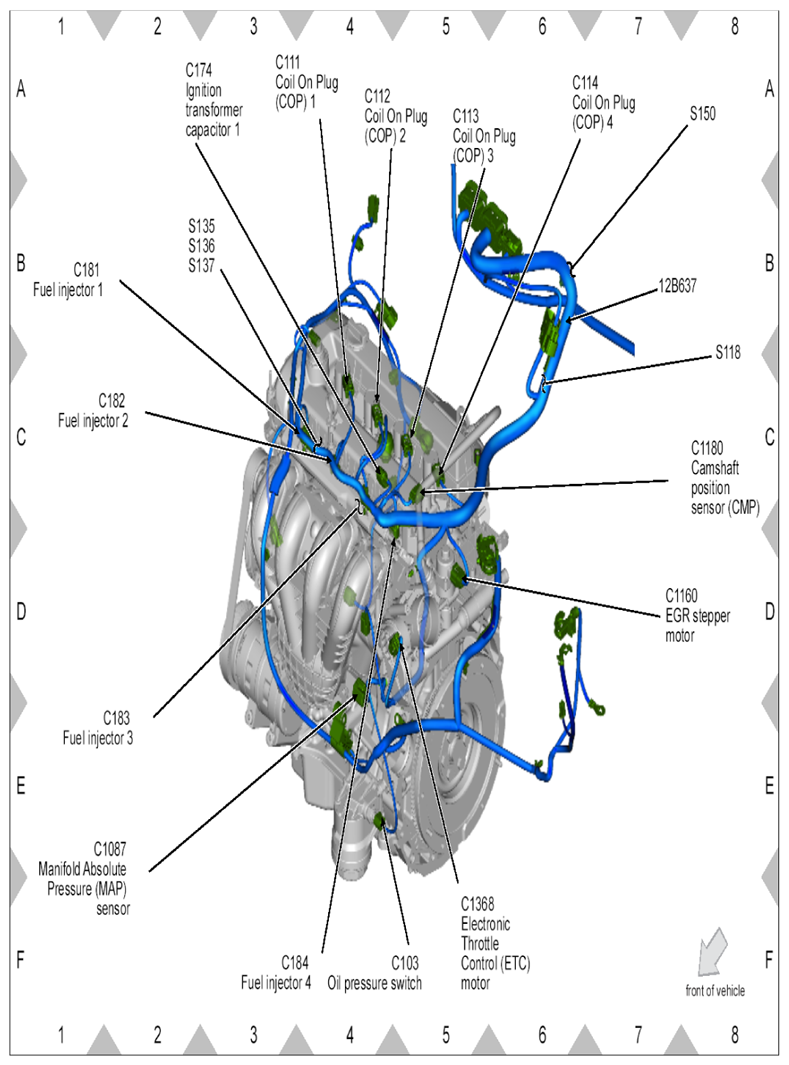

Fig 8: Identifying Engine Wiring Harness Connector Location (3 Of 7)
G07855431Courtesy of FORD MOTOR CO.

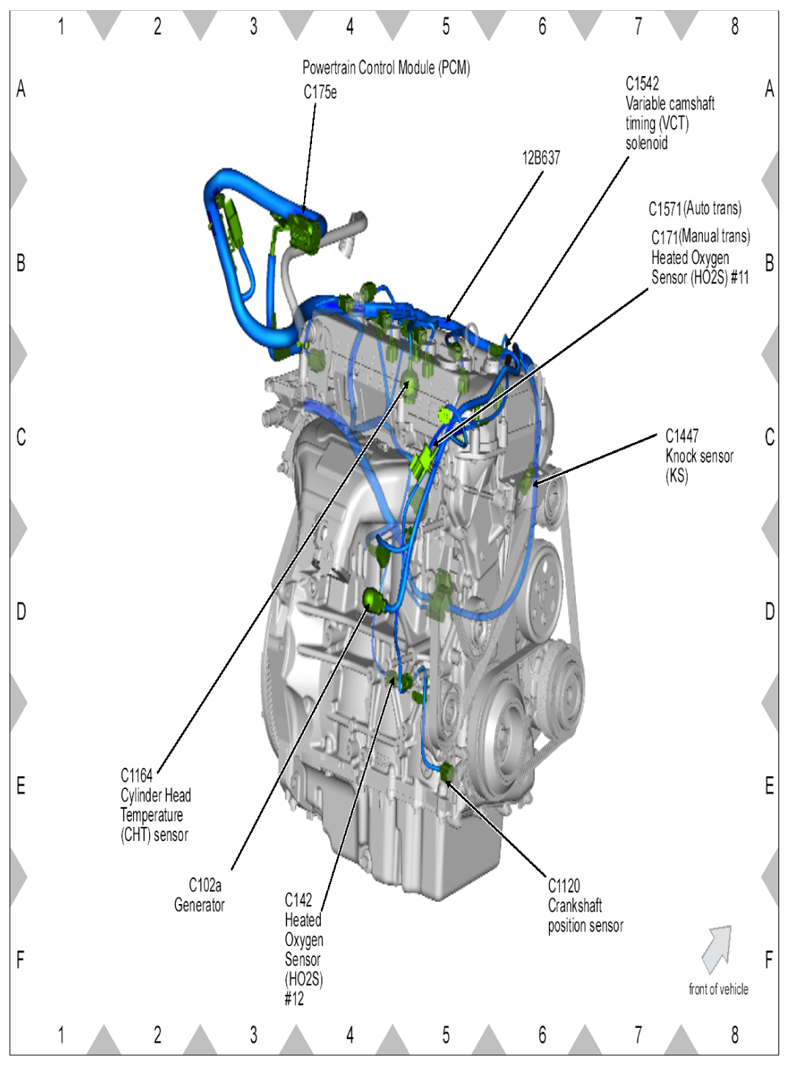

Fig 9: Identifying Engine Wiring Harness Connector Location (4 Of 7)
G07855432Courtesy of FORD MOTOR CO.

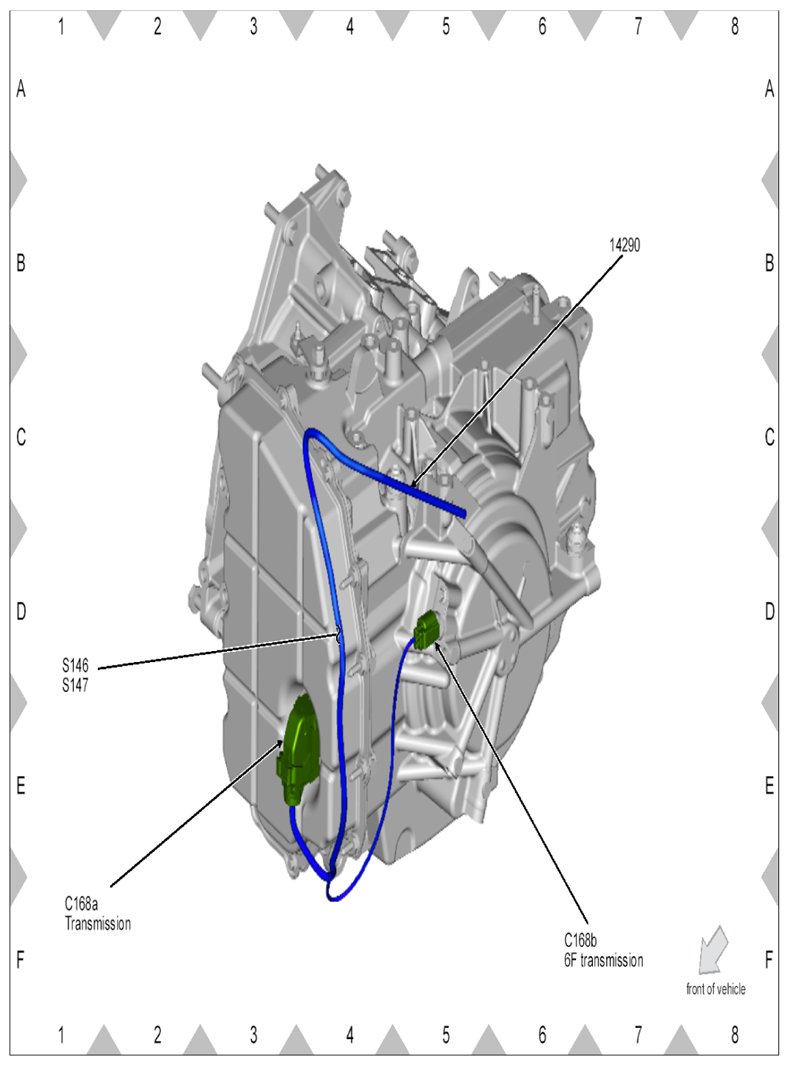

Fig 10: Identifying Engine Wiring Harness Connector Location (5 Of 7)
G07855433Courtesy of FORD MOTOR CO.

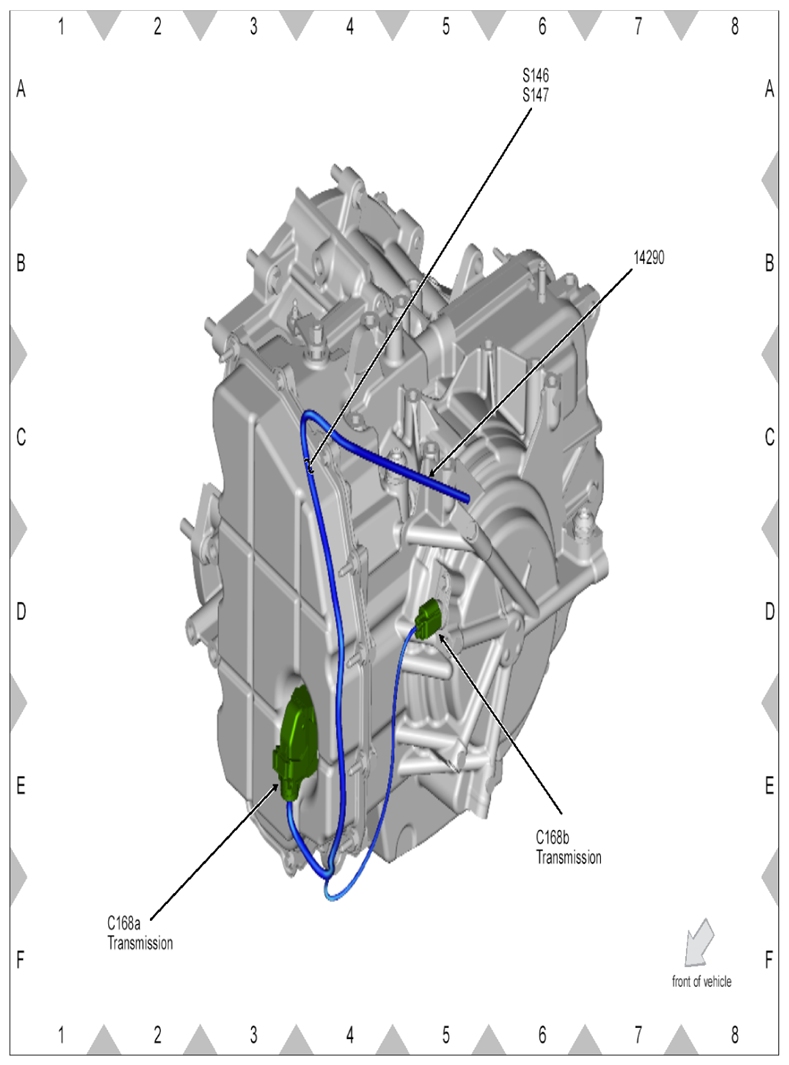

Fig 11: Identifying Engine Wiring Harness Connector Location (6 Of 7)
G07855434Courtesy of FORD MOTOR CO.

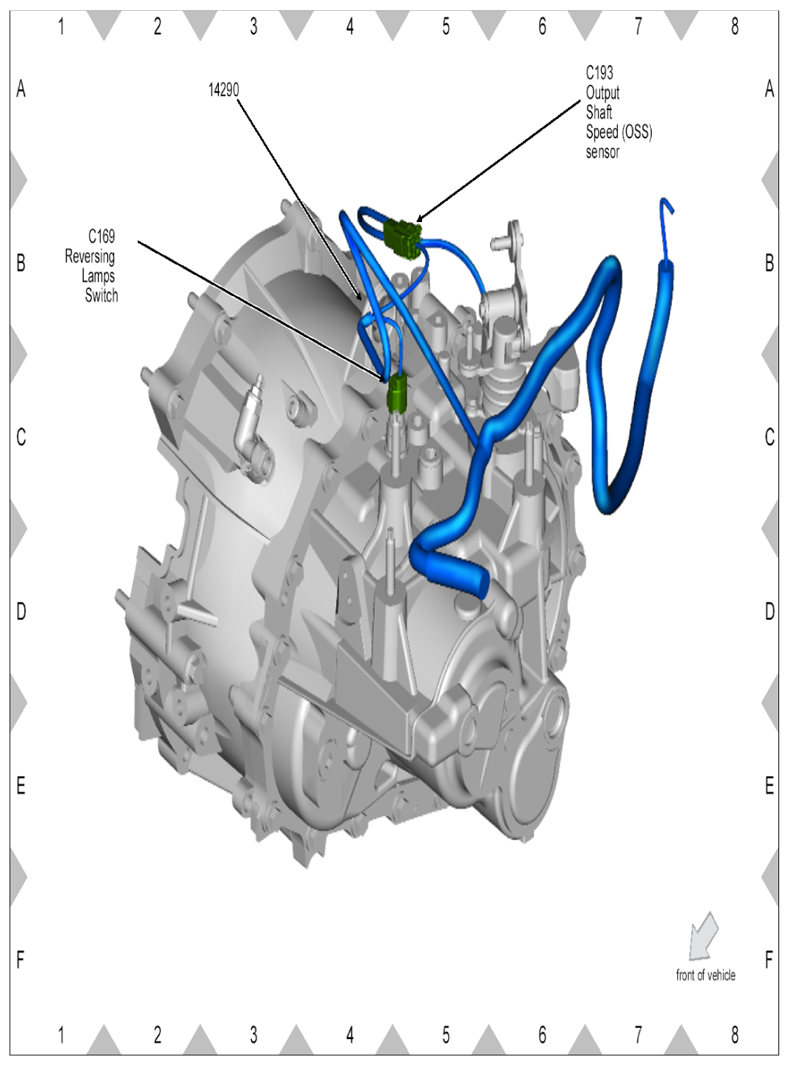

Fig 12: Identifying Engine Wiring Harness Connector Location (7 Of 7)
G07855435Courtesy of FORD MOTOR CO.

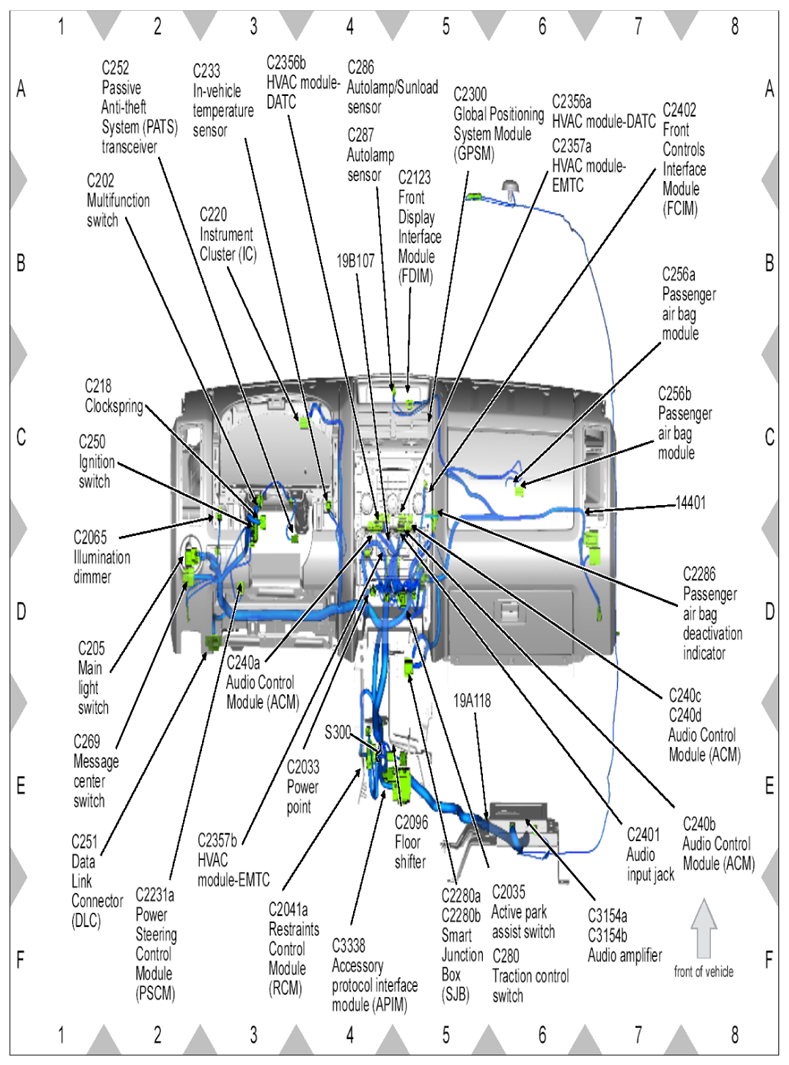

Fig 13: Identifying Dash Panel Wiring Harness Connector Location (1 Of 2)
G07855436Courtesy of FORD MOTOR CO.

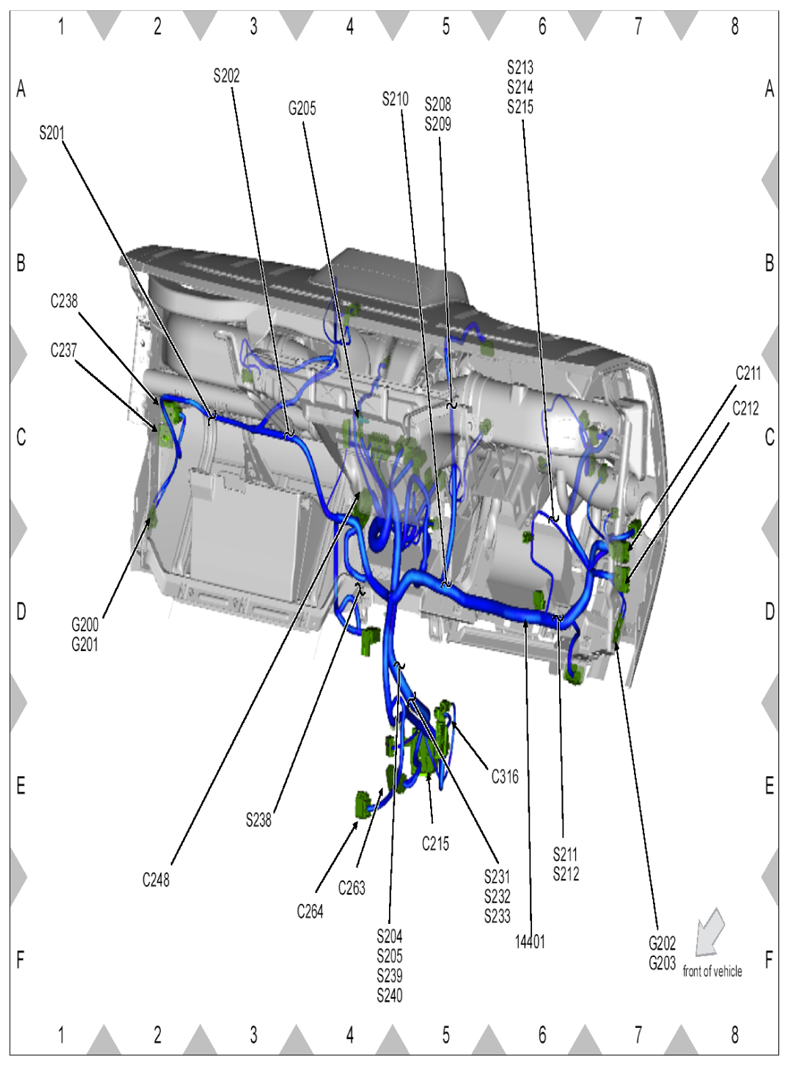

Fig 14: Identifying Dash Panel Wiring Harness Connector Location (2 Of 2)
G07855437Courtesy of FORD MOTOR CO.

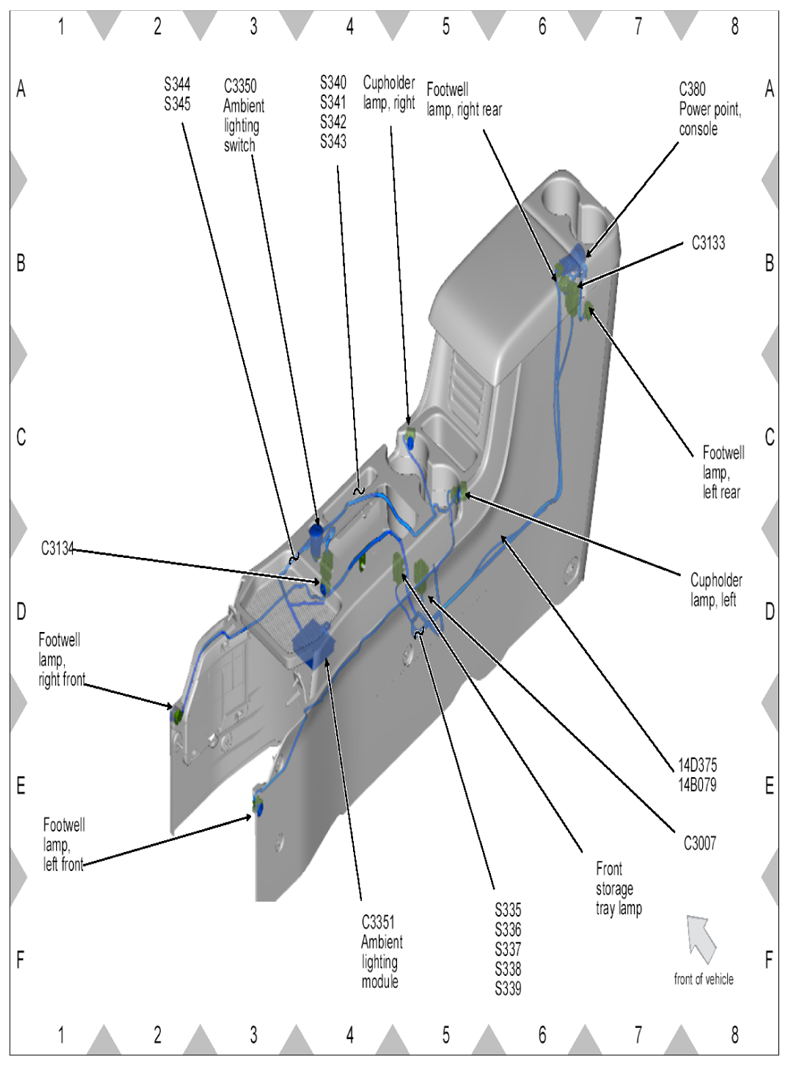

Fig 15: Identifying Center Console Wiring Harness Connector Location
G07855438Courtesy of FORD MOTOR CO.

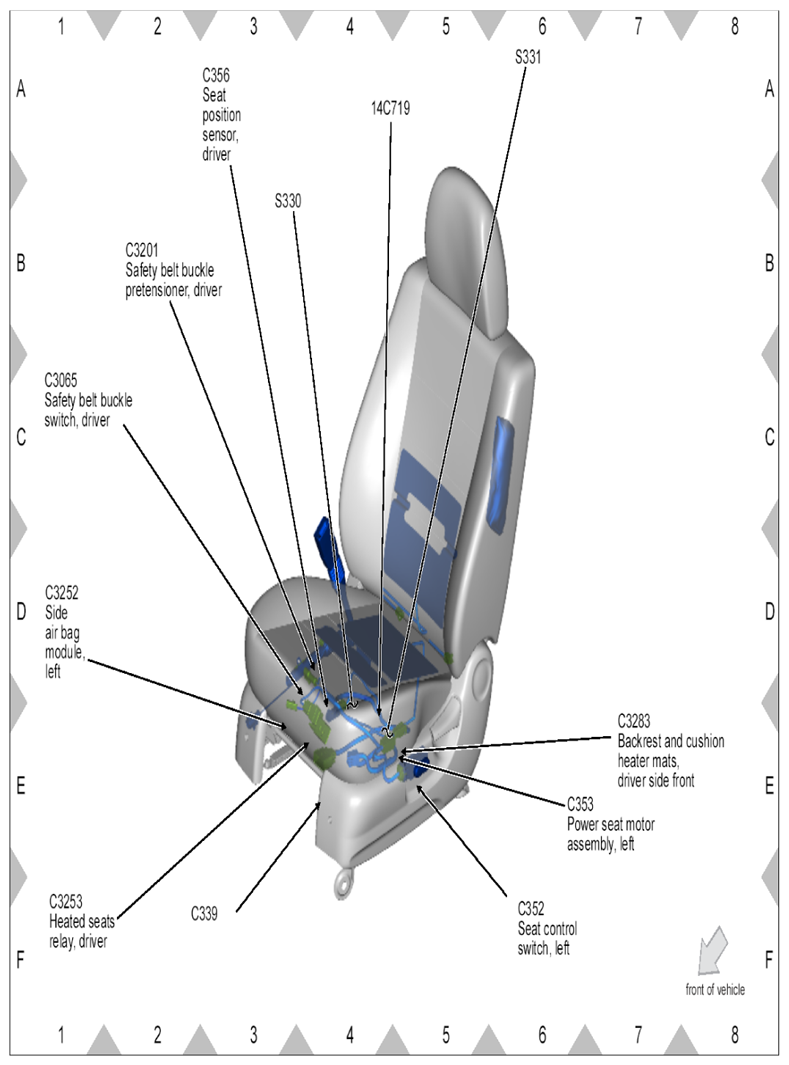

Fig 16: Identifying Driver Seat Wiring Harness Connector Location
G07855439Courtesy of FORD MOTOR CO.

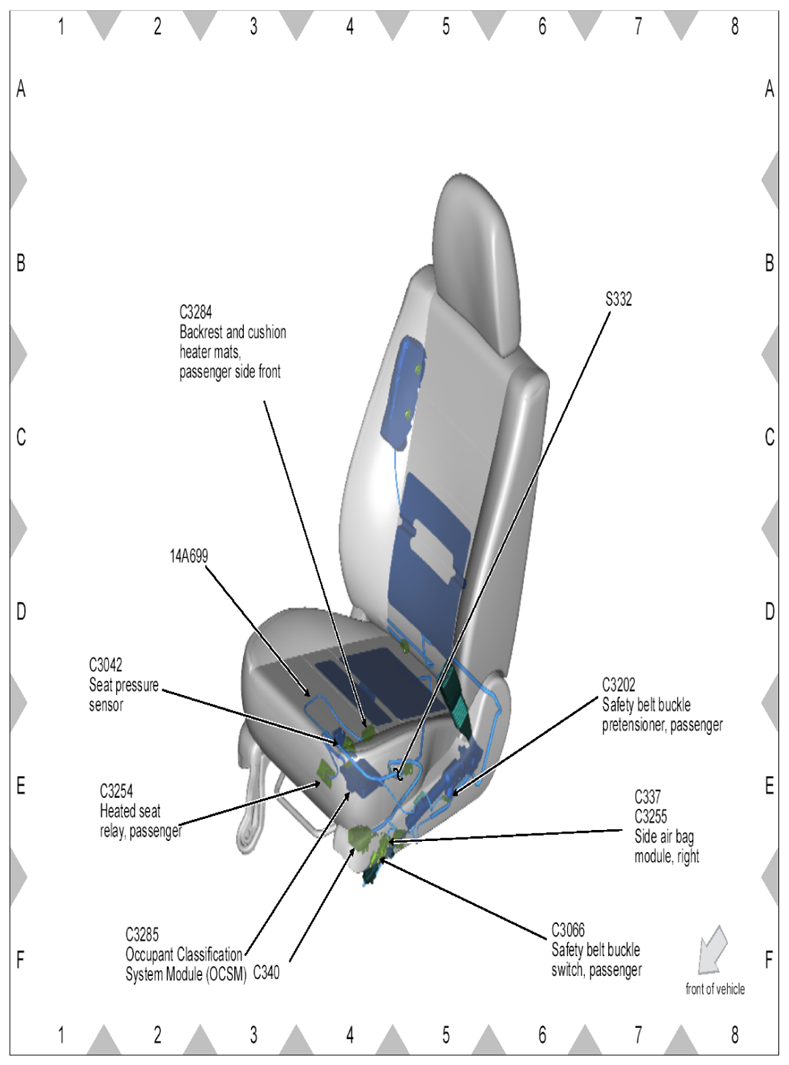

Fig 17: Identifying Passenger Seat Wiring Harness Connector Location
G07855440Courtesy of FORD MOTOR CO.

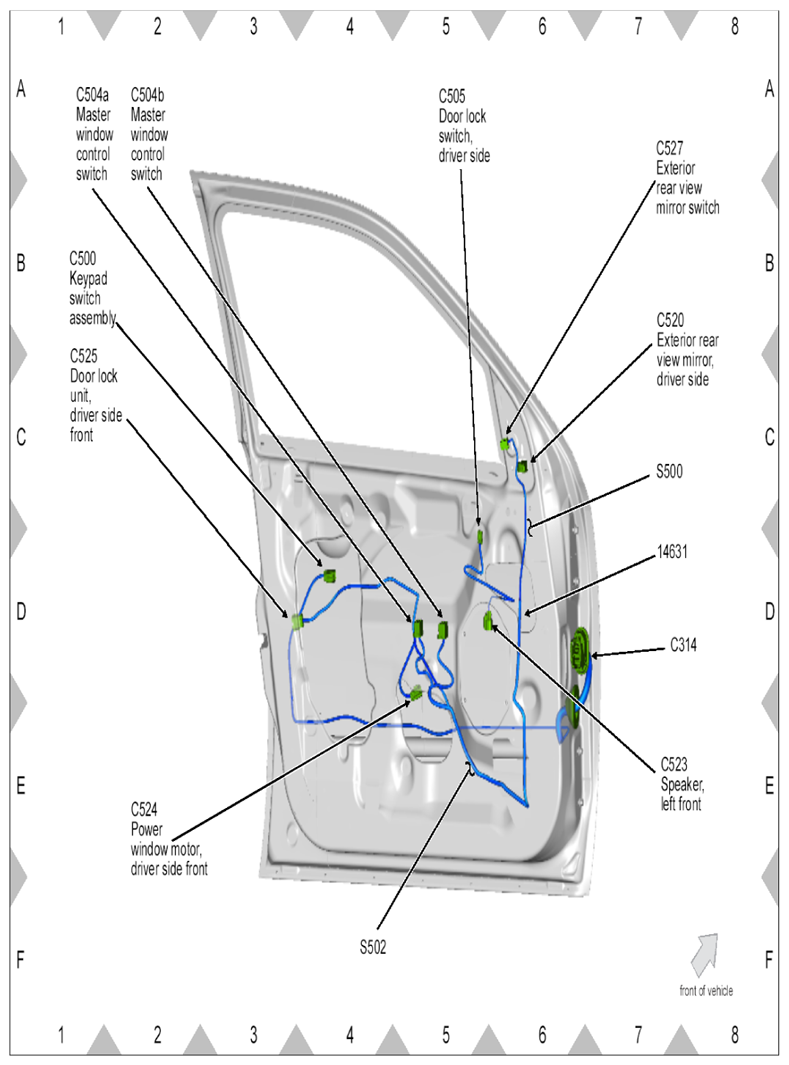

Fig 18: Identifying LH Driver Side Wiring Harness Connector Location
G07855441Courtesy of FORD MOTOR CO.

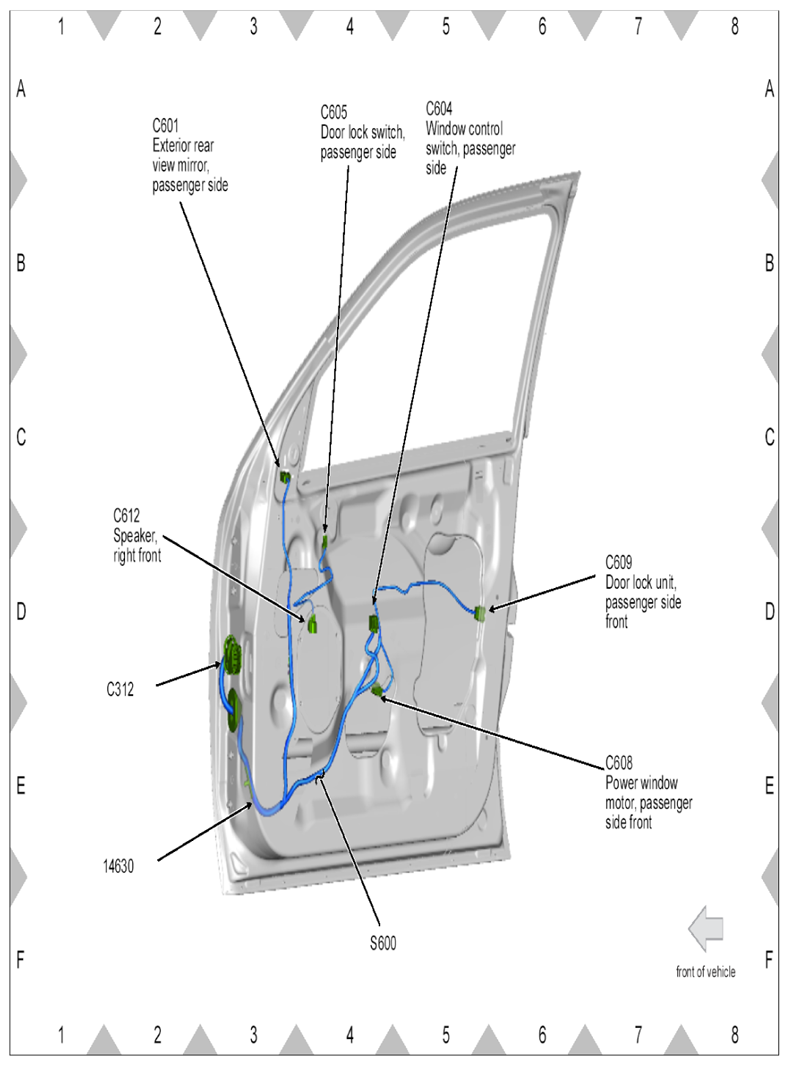

Fig 19: Identifying RH Driver Side Wiring Harness Connector Location
G07855442Courtesy of FORD MOTOR CO.

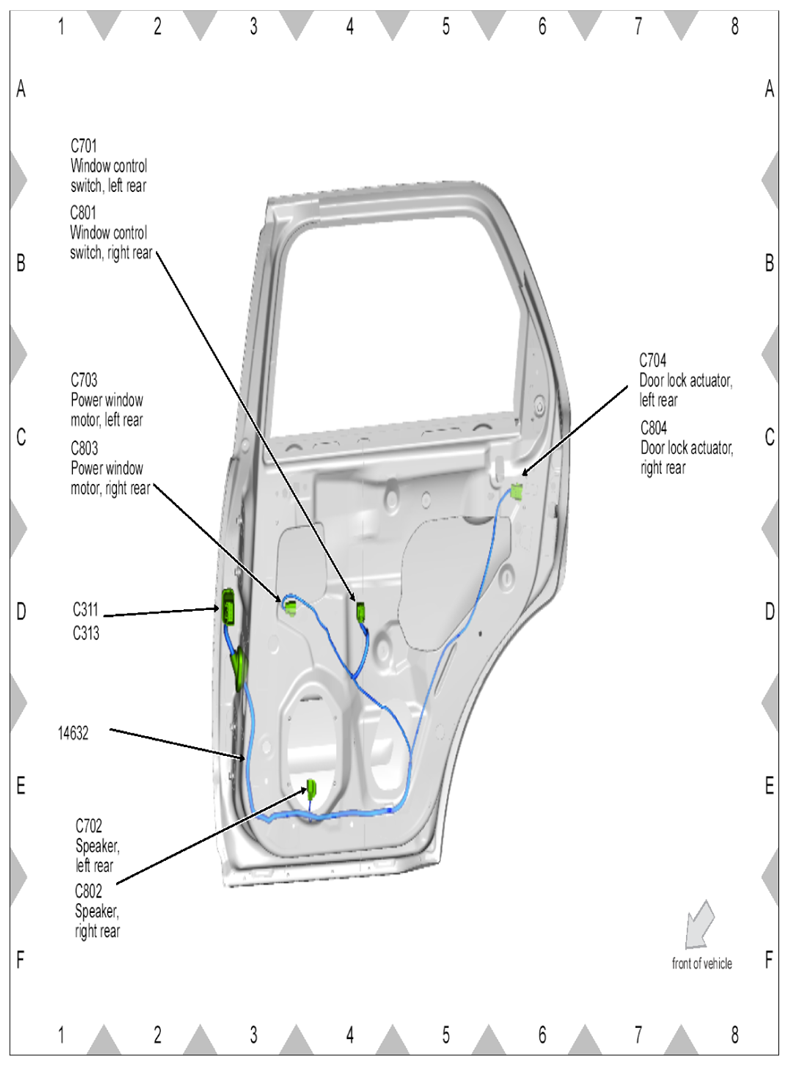

Fig 20: Identifying RH Passenger Side Wiring Harness Connector Location
G07855443Courtesy of FORD MOTOR CO.

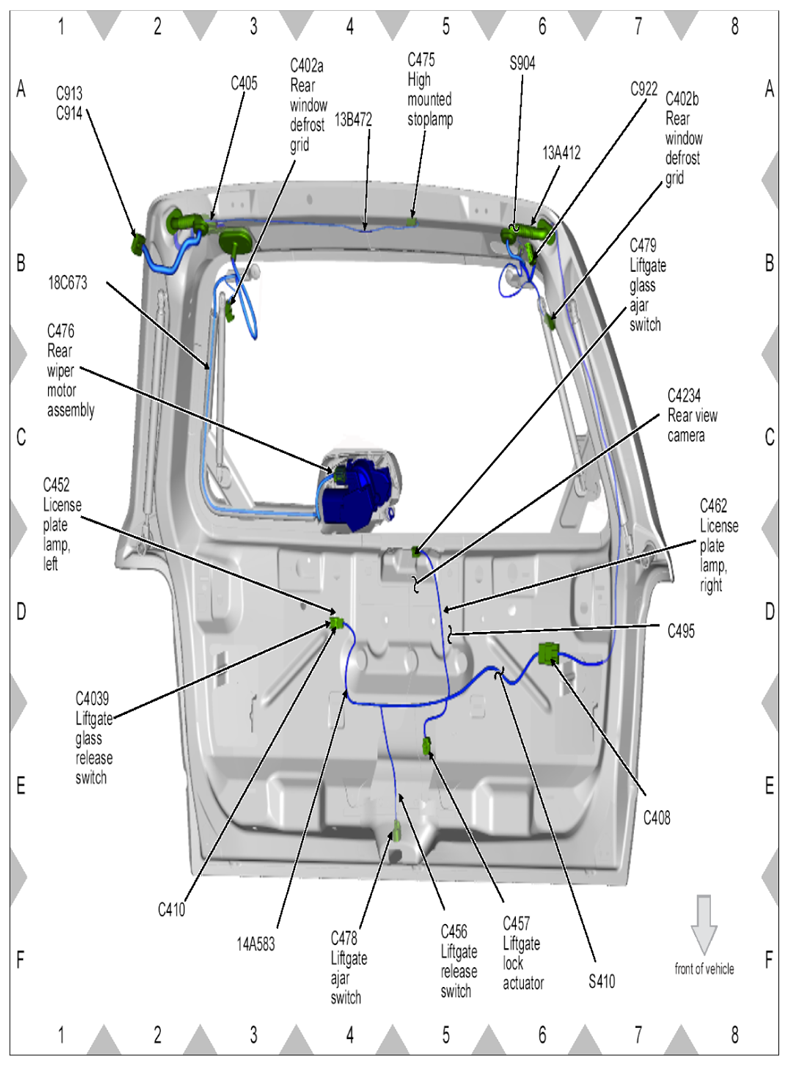

Fig 21: Identifying Back Door Wiring Harness Connector Location
G07855444Courtesy of FORD MOTOR CO.

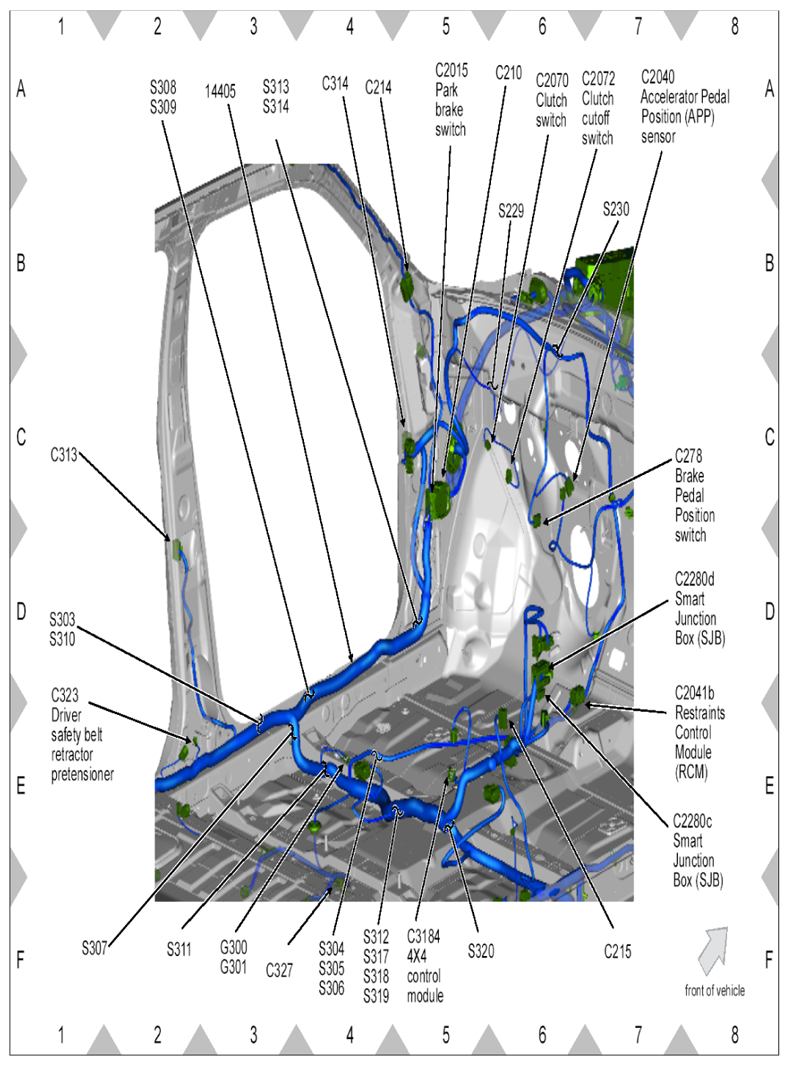

Fig 22: Identifying LH Floor Panel Wiring Harness Connector Location
G07855445Courtesy of FORD MOTOR CO.

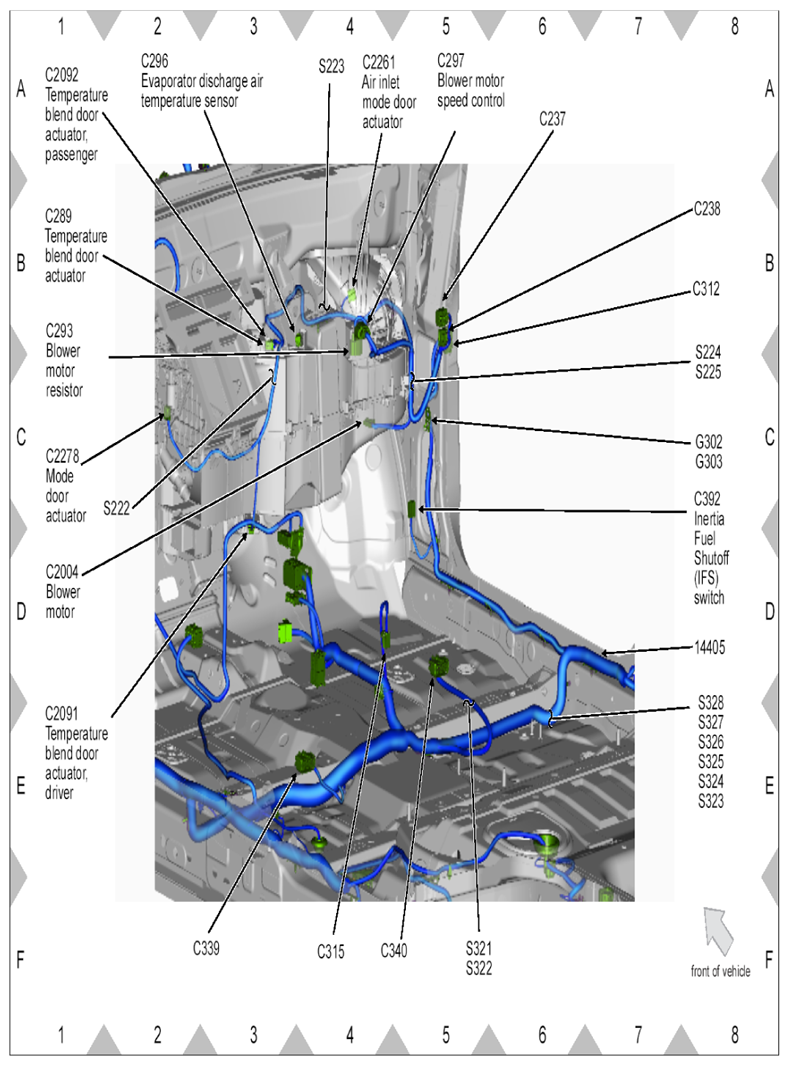

Fig 23: Identifying RH Floor Panel Wiring Harness Connector Location
G07855446Courtesy of FORD MOTOR CO.

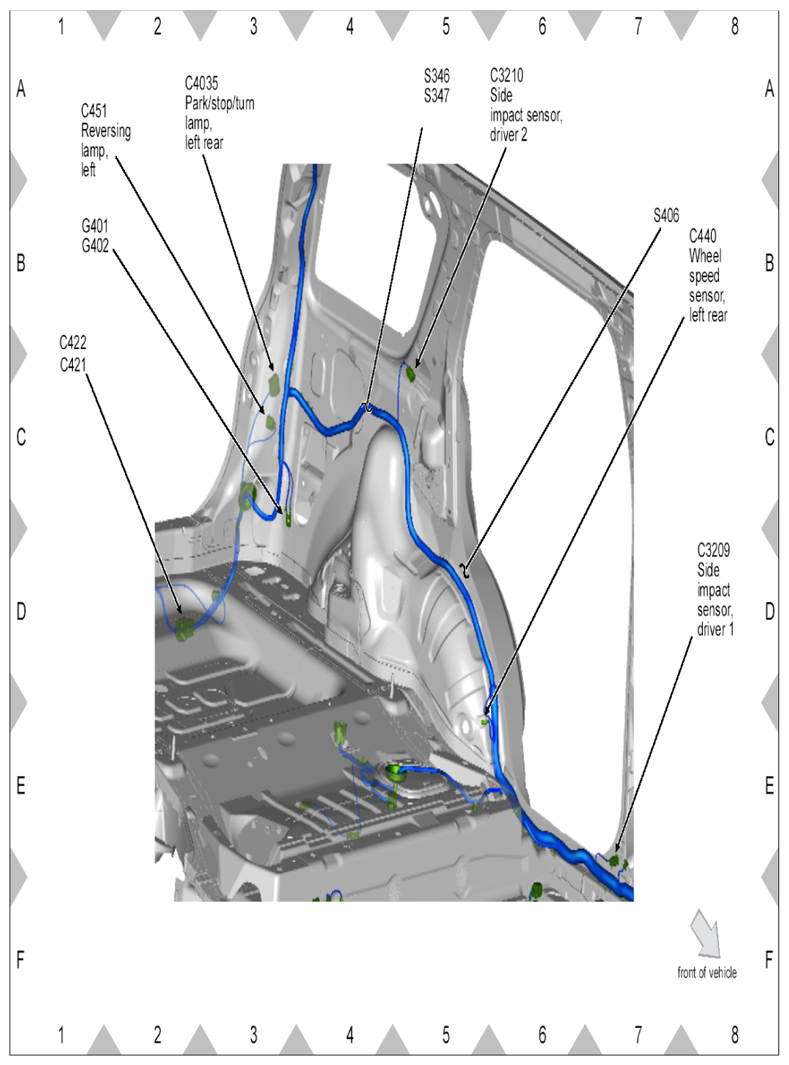

Fig 24: Identifying LH Rear Side Wiring Harness Connector Location
G07855447Courtesy of FORD MOTOR CO.

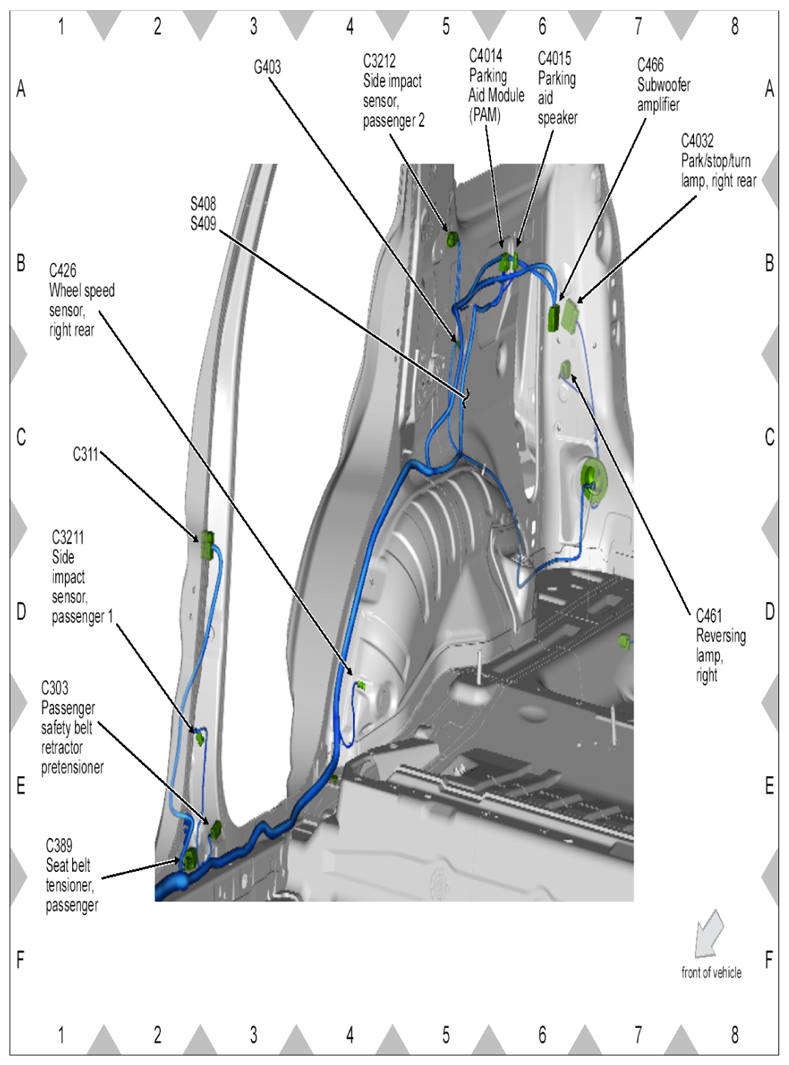

Fig 25: Identifying RH Rear Side Wiring Harness Connector Location
G07855448Courtesy of FORD MOTOR CO.

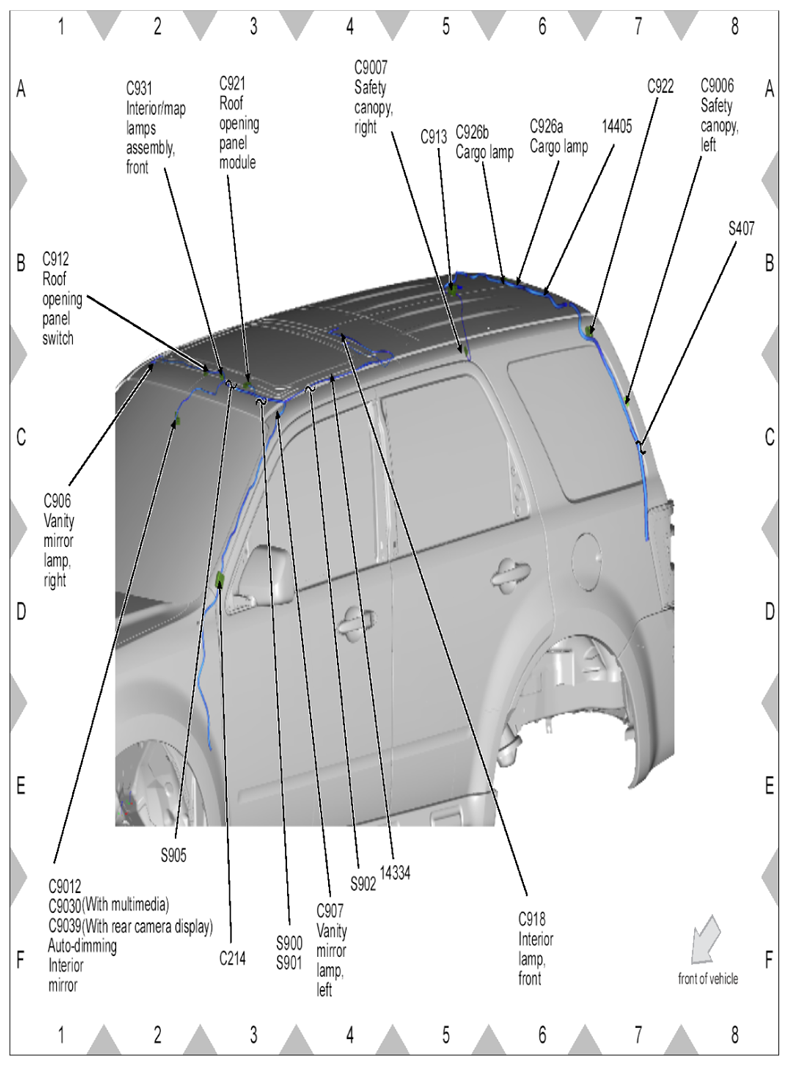

Fig 26: Identifying Roof Panel Wiring Harness Connector Location
G07855449Courtesy of FORD MOTOR CO.

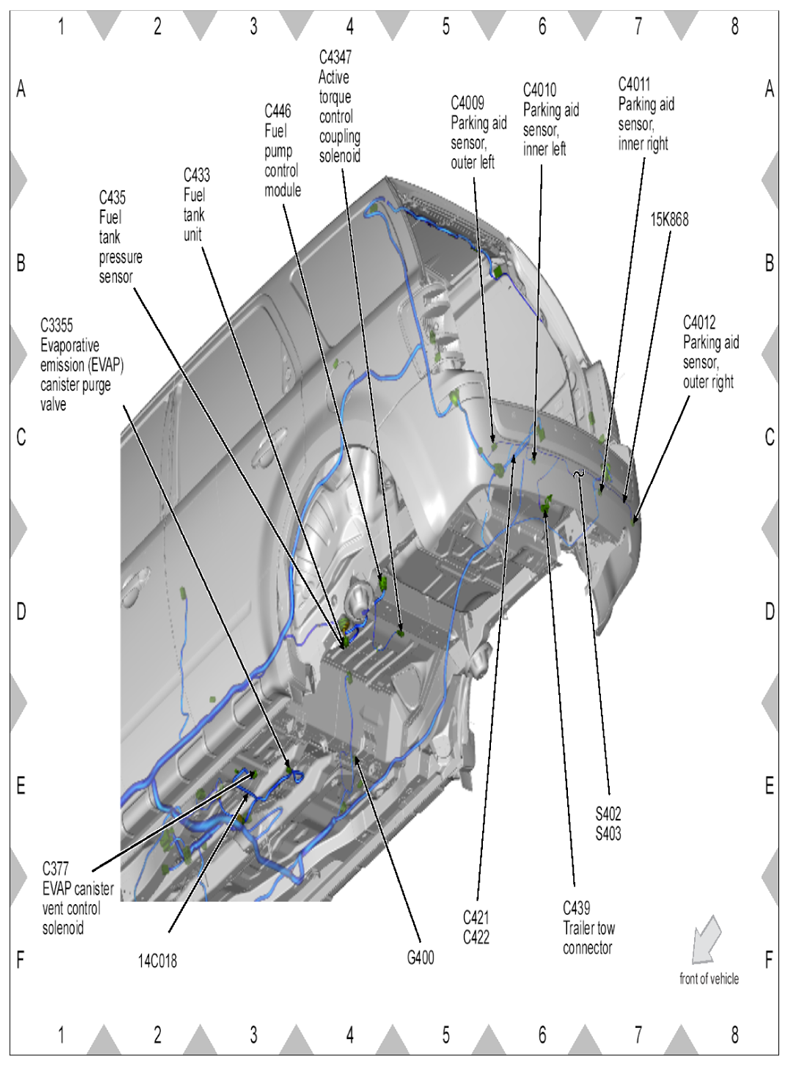

Fig 27: Identifying Lower Floor Panel Wiring Harness Connector Location
G07855450Courtesy of FORD MOTOR CO.

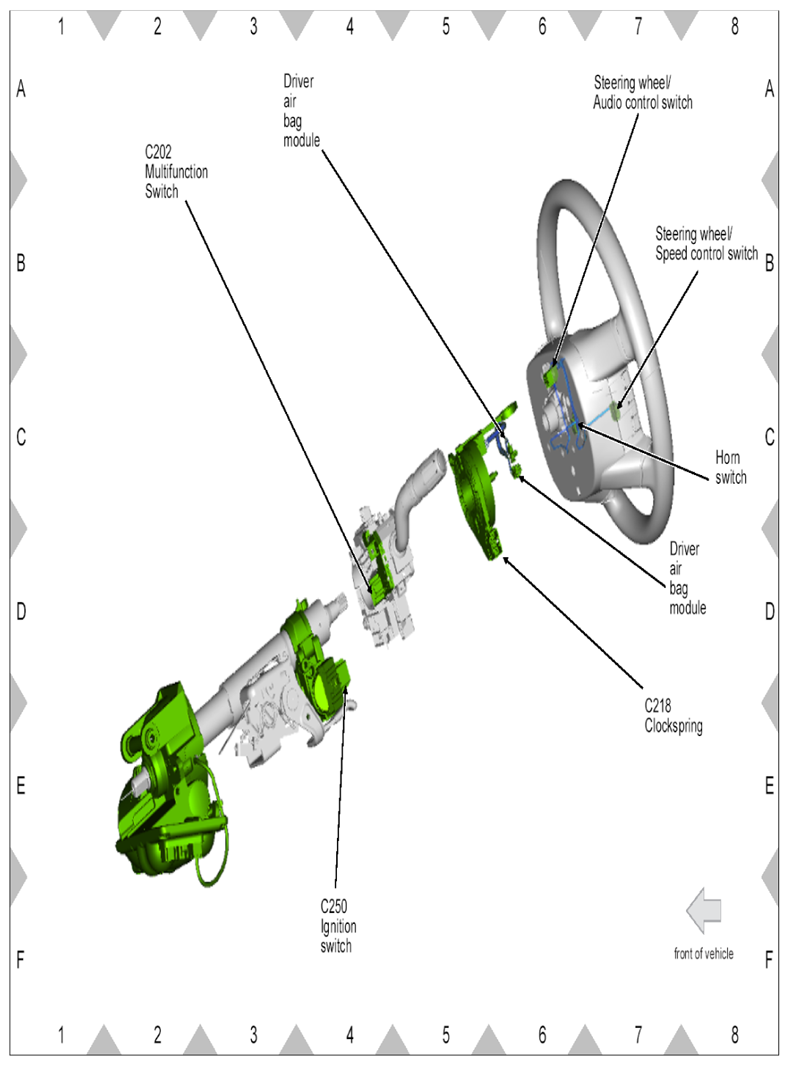

Fig 28: Identifying Steering Assembly Wiring Harness Connector Location
G07855451Courtesy of FORD MOTOR CO.
