Disassembly And Assembly: Halfshaft: Assembly

NOTE: The inner joint must not be bent at more than 18 degrees; the outer joint must not be bent at more than 45 degrees or damage to the component my occur.

NOTE: Use care not to damage the boot or component damage may occur.

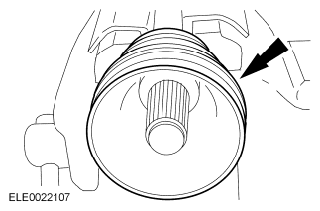

Install the new CV joint boot.

Fig 1: Locating CV Joint Boot
Courtesy of FORD MOTOR CO.

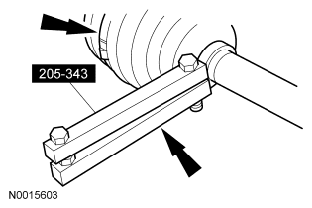

Using the Constant Velocity Joint Boot Clamp Installer, install the new CV joint boot retaining inner clamp.

Fig 2: Installing CV Joint Boot Retaining Inner Clamp Using Constant Velocity Joint Boot Clamp Installer
Courtesy of FORD MOTOR CO.

NOTE: Do not damage the tripod joint roller bearings or component damage may occur.

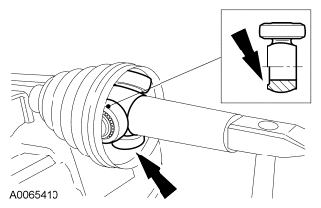

Install the tripod on the inboard end of the shaft.
- Using a suitable driver, push the tripod onto the front drive halfshaft far enough for the snap ring to be installed.

  Fig 3: Locating Front Drive Halfshaft And Tripod
  Courtesy of FORD MOTOR CO.

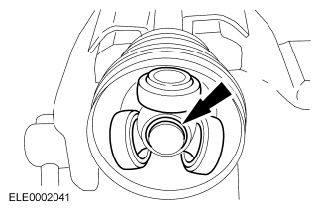

Install the new snap ring.

Fig 4: Locating Snap Ring
Courtesy of FORD MOTOR CO.
Install half of the sachet of grease into the tripod housing. Inject the other half of the grease into the boot.

NOTE: Use care not to damage the boot or component damage may occur.

Install the tripod joint into the tripod housing.
1. Insert a small flat-blade screwdriver under the boot seat to allow the air to escape.
2. Slide the tripod joint in as far as it will go, then pull it out 20 mm (0.787 in).
  - Remove the screwdriver.

    Fig 5: Inserting Small Flat-Blade Screwdriver Under Boot Seat
    Courtesy of FORD MOTOR CO.

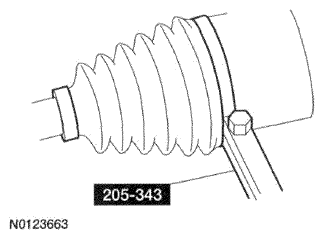

Using the Constant Velocity Joint Boot Clamp Installer, install the new CV joint boot retaining outer clamp.

Fig 6: Installing CV Joint Boot Retaining Outer Clamp Using Constant Velocity Joint Boot Clamp Installer
Courtesy of FORD MOTOR CO.
Install the halfshaft assembly. For additional information, refer to HALFSHAFT in this service information.
