Fuel Pump Control Module Connector End View (C446)

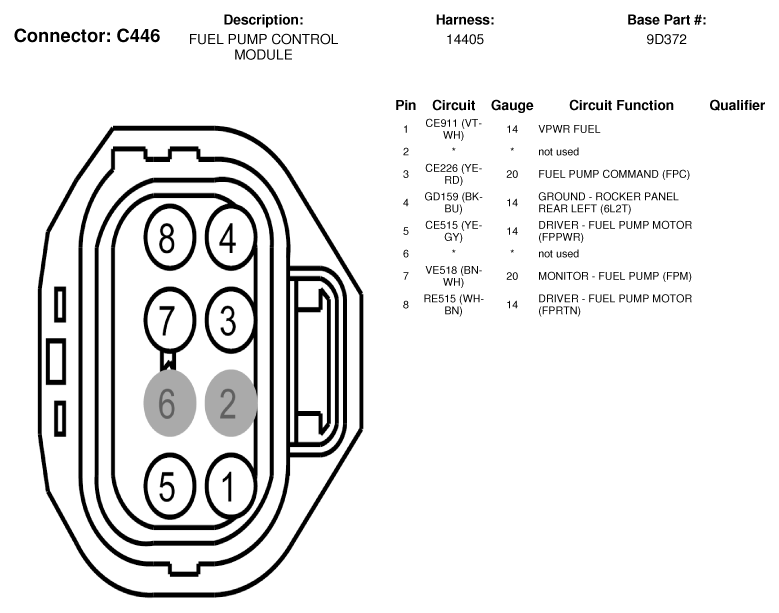

Fig 1: Fuel Pump Control Module Connector End View (C446)

G07333955

Courtesy of FORD MOTOR CO.
