Vehicle Speed Sensor (VSS): Notes

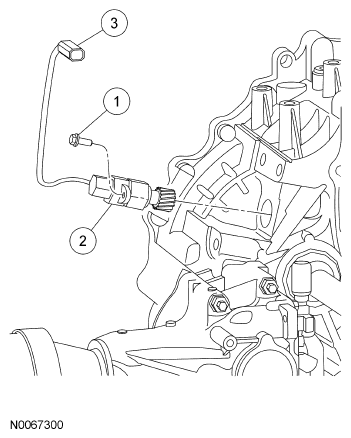

Fig 1: Identifying Vehicle Speed Sensor Components
G06098194Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 W500013 Vehicle Speed Sensor (VSS) bolt
2 17271 VSS
3 - VSS  electrical connector
