Disassembly And Assembly Of Subassemblies: Synchronizers: Notes

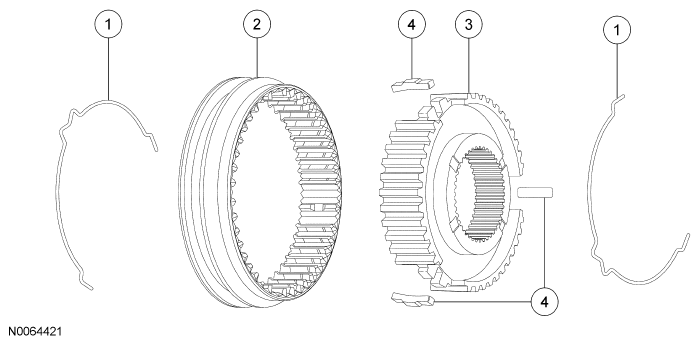

Fig 1: Exploded View Of Synchronizers Components

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION CHART

Item	Part Number	Description
1	7109	Synchronizer springs
2	7C115	Synchronizer sleeve (part of assembly)
3	7C115	Synchronizer hub (part of assembly)
4	7C396	Synchronizer keys (3 required)
