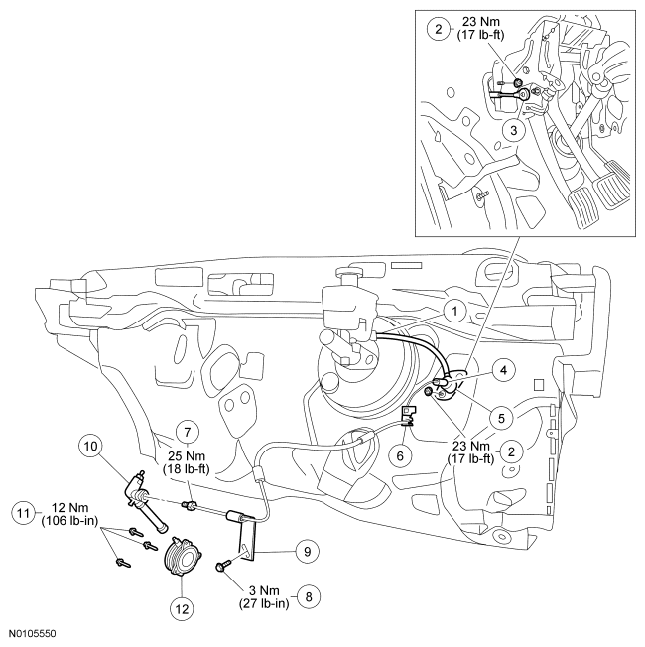

Clutch Controls - Exploded View
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Clutch master cylinder hose (part of 7A543) |
| 2 | W520413 | Clutch master cylinder nuts (2 required) |
| 3 | - | Clutch master cylinder push rod (part of 7A543) |
| 4 | - | Clutch hydraulic fluid tube fitting (part of 7K592) |
| 5 | 7A543 | Clutch master cylinder |
| 6 | 7K592 | Clutch hydraulic fluid tube |
| 7 | - | Clutch hydraulic fluid tube fitting (part of 7K592) |
| 8 | W500013 | Clutch hydraulic fluid tube bracket bolt |
| 9 | 13B408 | Clutch hydraulic fluid tube bracket |
| 10 | 7K590 | Clutch slave cylinder-to-clutch hydraulic fluid tube adapter |
| 11 | W706360 | Clutch slave cylinder bolts (3 required) |
| 12 | 7A508 | Clutch slave cylinder |
- For further information, refer to the appropriate procedures in this service information.
