Customer Satisfaction Program 13B17

SUBJECT

Customer Satisfaction Program 13B17 - Supplement #1

Certain 2009 through 2012 Model Year Fusion, Milan, Escape and Mariner Vehicles

Throttle Body PCM Calibration Update

REF

Customer Satisfaction Program 13B17

Throttle Body PCM Calibration Update dated May 13, 2014

Customer Satisfaction Program 13N03

Throttle Body Extended Coverage dated March 5, 2014

REASON FOR THIS SUPPLEMENT

Announce that 2.5L engine throttle body PCM Calibrations are now available. All affected 2.5L vehicles have been added to this program.

PROGRAM TERMS

This program will be in effect through July 31, 2015. There is no mileage limit for this program.

URGENCY/EXPIRATION DATE

This Customer Satisfaction Program has an expiration date of July 31, 2015 to encourage dealers and customers to have this service performed as soon as possible.

We recommend dealers utilize their FSA VIN list name and address to contact customers with affected vehicles. This program will improve vehicle driveability in the event of electronic throttle body motor contamination.

VEHICLES COVERED BY THIS PROGRAM

Vehicle Lines	Model Years	Assembly Plant	Build Dates
Fusion/Milan (3.0L)	2010-2012	Hermosillo	September 22, 2008 through April 29, 2012
Escape/Mariner (3.0L)	2009-2012	Kansas City	January 18, 2008 through July 29, 2012
Fusion/Milan (2.5L)	2010-2011	Hermosillo	July 6, 2009 through October 30, 2010
Escape/Mariner (2.5L)	2010-2011	Kansas City	July 24, 2009 through October 31, 2010

Affected vehicles are identified in OASIS.

REASON FOR THIS PROGRAM

Affected vehicles may develop contamination on the throttle body internal motor contacts resulting in intermittent electrical connectivity. If this condition is present, the Malfunction Indicator Lamp (MIL) or Wrench light will illuminate and the vehicle may enter a Failure Mode Effects Management (FMEM) of default throttle position with fixed RPM. In this mode, engine power and vehicle speed are reduced, while full function of the power steering, power braking, lighting, and climate control systems are maintained. In the interest of customer satisfaction, Ford Motor Company has developed an updated powertrain calibration that will improve vehicle performance should this occur.

SERVICE ACTION

Before demonstrating or delivering any of the vehicles involved in this program, dealers are to reprogram the PCM using IDS version 90.04 or higher. This reprograming will enhance the vehicles driveability when operating in certain throttle failure modes. This service must be performed on all affected vehicles at no charge to the vehicle owner.

NOTE: 3.0L Engine vehicles previously completed and closed in OASIS do not require a second repair.

OWNER NOTIFICATION MAILING SCHEDULE

Owners of vehicles equipped with 3.0L engines will be notified beginning the week of May 19, 2014.
Owners of vehicles equipped with 2.5L engines will be notified beginning the week of June 9, 2014.

ATTACHMENTS

Attachment I: Administrative Information
Attachment II: Labor Allowances
Attachment III: Technical Information

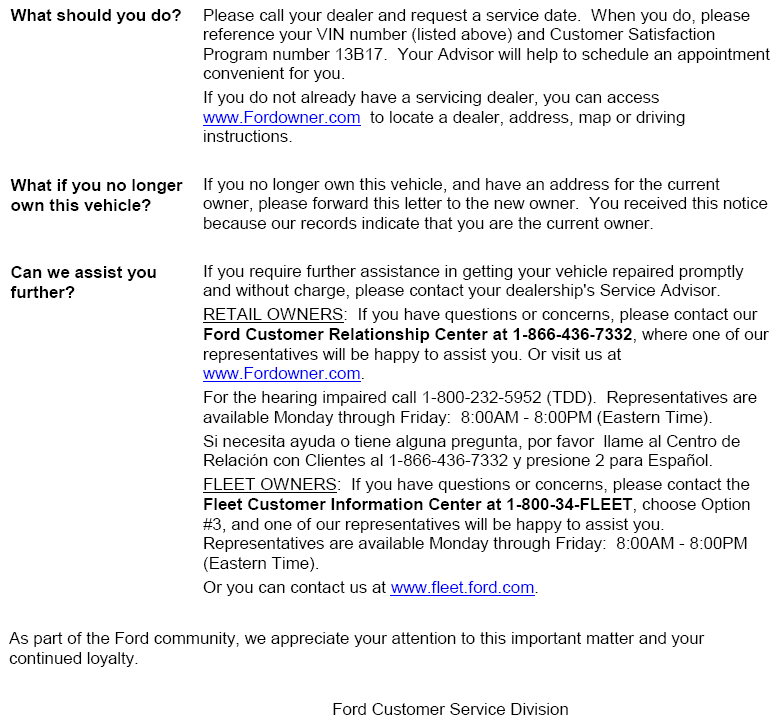

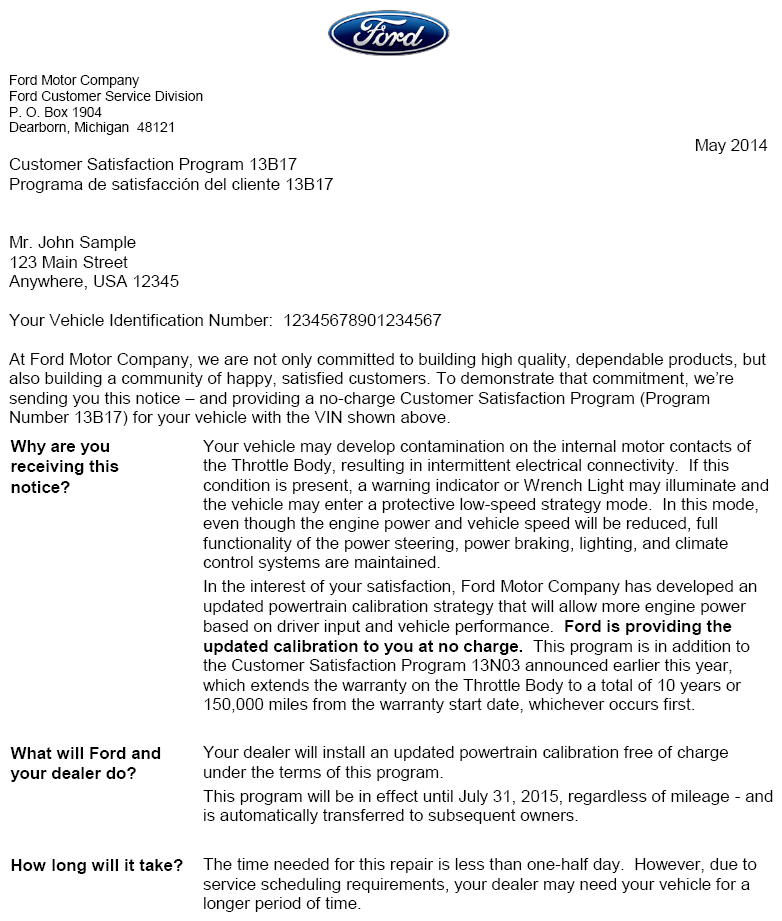

Owner Notification Letter

QUESTIONS & ASSISTANCE

Special Service Support Center (Dealer Assistance Only) ... 1-800-325-5621

OASIS ACTIVATED?

Yes, OASIS will be activated for vehicles with 3.0L engines on May 13, 2014, and for vehicles with 2.5L engines on June 10, 2014.

FSA VIN LIST ACTIVATED?

Yes, FSA VIN list will be available through https://web.fsavinlists.dealerconnection.com for all vehicles on June 10, 2014. Owner names and addresses will be available for all vehicles by June 17, 2014.

NOTE: Your FSA VIN list may contain owner names and addresses obtained from motor vehicle registration records. The use of such motor vehicle registration data for any purpose other than in connection with this program is a violation of law in several states, provinces, and countries. Accordingly, you must limit the use of this listing to the follow-up necessary to complete this service action.

STOCK VEHICLES

Use OASIS to identify any affected vehicles in your used vehicle inventory.

SOLD VEHICLES

Owners of affected vehicles will be directed to dealers for repairs.
Immediately contact any of your affected customers whose vehicles are not on your VIN list but are identified in OASIS. Give the customer a copy of the Owner Notification Letter (when available) and schedule a service date.
Correct other affected vehicles identified in OASIS which are brought to your dealership.

TITLE BRANDED/SALVAGED VEHICLES

Affected title branded and salvaged vehicles are eligible for this service action.

OWNER REFUNDS

Refunds are not authorized for this program.

RENTAL VEHICLES

The use of rental vehicles is not authorized for this program.

CLAIMS PREPARATION AND SUBMISSION

Enter claims using Direct Warranty Entry (DWE).
Refer to ACESII manual for claims preparation and submission information.
PROGRAM TERMS: This program will be in effect through July 31, 2015. There is no mileage limit for this program.

LABOR ALLOWANCES

Description	Labor Operation	Labor Time
All Models - Reprogram the PCM to the Latest Calibration using IDS 90.04 or higher	13B17B	0.3 Hour(s)

PARTS REQUIREMENTS/ORDERING INFORMATION

Parts are not required to complete this repair.

OVERVIEW

Affected vehicles may develop contamination on the throttle body internal motor contacts resulting in intermittent electrical connectivity. If this condition is present, the Malfunction Indicator Lamp (MIL) or Wrench light will illuminate and the vehicle may enter a Failure Mode Effects Management (FMEM) of default throttle position with fixed RPM. In this mode, engine power and vehicle speed are reduced, while full function of the power steering, power braking, lighting, and climate control systems are maintained. In the interest of customer satisfaction, Ford Motor Company has developed an updated powertrain calibration that will improve vehicle performance should this occur.

SERVICE PROCEDURE

Important Information for Module Programming

NOTE: When programming or reprogramming a module, use the following basic checks to ensure programming completes without errors.

Make sure the 12V battery is fully charged before carrying out the programming steps and connect IDS/scan tool to a power source.
Inspect Vehicle Communication Module (VCM) and cables for any damage. Make sure scan tool connections are not interrupted during programming.
A hardwired connection is strongly recommended.
Turn off all unnecessary accessories (radio, heated/cooled seats, headlamps, interior lamps, HVAC system, etc.) and close doors.
Disconnect/depower any aftermarket accessories (remote start, alarm, power inverter, CB radio, etc.).
Follow all scan tool on-screen instructions carefully.
Disable IDS/scan tool sleep mode, screensaver, hibernation modes.
Create all sessions Key On Engine Off (KOEO). Starting the vehicle before creating a session will cause errors within the programming inhale process.

Module Reprogramming

NOTE: Reprogram appropriate vehicle modules before performing diagnostics and clear all Diagnostic Trouble Codes (DTCs) after programming. For DTCs generated after reprogramming, follow normal diagnostic service procedures.

Connect a battery charger to the 12V battery.
Reprogram the PCM using IDS release 90.04 or higher.
NOTE: Calibration files may also be obtained at www.motorcraft.com.

NOTE: Follow the IDS on-screen instructions to complete the reprogramming procedure.
Disconnect the battery charger from the 12V battery, once reprogramming has completed.
Recovering a module when programming has resulted in a blank module: NEVER DELETE THE ORIGINAL SESSION!
1. Obtain the original IDS that was used when the programming error occurred during Module Reprogramming (MR) or Programmable Module Installation (PMI).
2. Disconnect the VCM from the Data Link Connector (DLC) and the IDS.
3. Reconnect the VCM to IDS and then connect to the DLC. Once reconnected, the VCM icon should appear in the corner of the IDS screen. If it does not, troubleshoot the IDS to VCM connection.
4. Locate the ORIGINAL vehicle session when programming failed. This should be the last session used in most cases. If not, use the session created on the date that the programming failed.
  NOTE: If the original session is not listed in the previous session list, click the "Recycle Bin" icon at the lower right of the previous session screen. This loads any deleted sessions and allows you to look through them. Double-click the session to restore it.
5. Once the session is loaded, the failed process should resume automatically.
6. If programming does not resume automatically, proceed to the Module Programming menu and select the previously attempted process, PMI or MR.
7. Follow all on-screen prompts/instructions.
8. Near the end of programming, the IDS prompts you to select certain parameters. It is important to make a selection for ALL parameters listed. If the correct selection is already highlighted, you must still choose that selection before clicking the "Tick" mark to complete the configuration.
9. The last screen on the IDS may list additional steps required to complete the programming process. Make sure all applicable steps listed on the screen are followed in order.

FORD:	2009 - 2012 Escape; 2010 - 2012 Fusion
MERCURY:	2009 - 2012 Mariner; 2010 - 2012 Milan

Customer Satisfaction Program 13B17 - Throttle Body Pcm Calibration Update (13B17)
