60/40 Split Bench
NOTE:
For torque specifications and torque sequence, refer to the procedure steps.

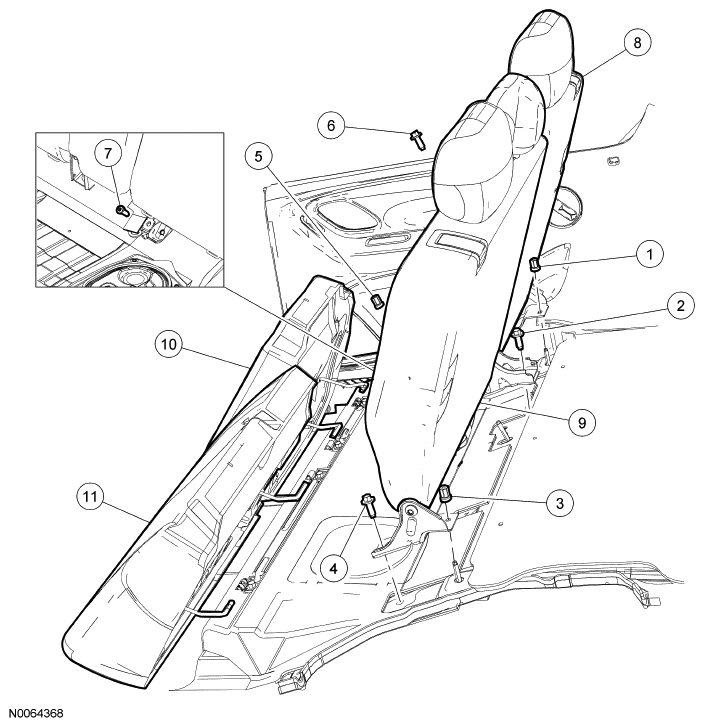

PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | W703424 | Backrest-to-floor nut, RH outboard |
| 2 | W707122 | Backrest-to-floor bolt, inboard |
| 3 | W703424 | Backrest-to-floor nut, LH outboard |
| 4 | W707122 | Backrest-to-floor bolt, LH outboard |
| 5 | W703424 | Backrest-to-floor nut, inboard |
| 6 | W707122 | Backrest-to-floor bolt, RH outboard |
| 7 | - | Center safety belt anchor bolt (part of 611B64) |
| 8 | - | Backrest, RH (40 percent) |
| 9 | - | Backrest, LH (60 percent) |
| 10 | - | Cushion, RH (40 percent) |
| 11 | - | Cushion, LH (60 percent) |
