Blower Motor Speed Control: Notes

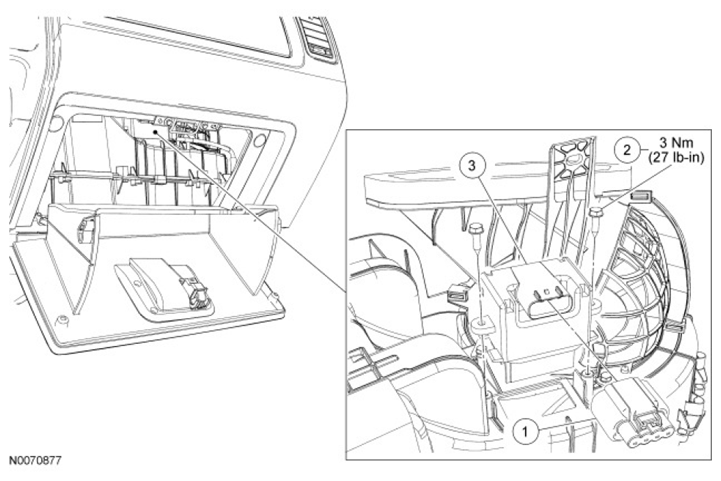

Fig 1: Blower Motor Speed Control Replacement Components With Torque Specifications
G07440235Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Blower motor speed control electrical connector (part of 19D887)
2 W701696 Blower motor speed control screw (2 required)
3 19E624 Blower motor speed control
