Gearshift Cables: Installation

NOTE: When inserting the gearshift cables through the dash panel, make sure the arrow on the grommet is pointing down.

Insert the gearshift cables through the dash panel.
Connect the selector cable.

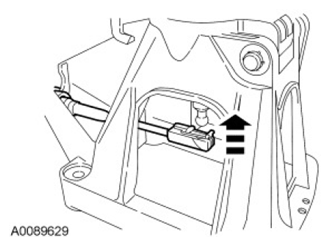

Fig 1: Connecting Gearshift Cables To Gearshift Lever
Courtesy of FORD MOTOR CO.
Connect the shift cable.

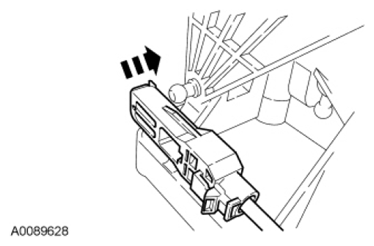

Fig 2: Connecting Gearshift Cable
Courtesy of FORD MOTOR CO.
Install the 2 gearshift cable grommet nuts.
- Tighten to 10 Nm (89 lb-in).

NOTE: Make sure the clips are set completely within the cable adapter groove and fully seated.

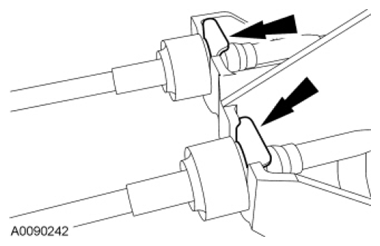

Fig 3: Locating Gearshift Cable Clips

Courtesy of FORD MOTOR CO.

Install the 2 gearshift cable clips.
Connect the gearshift cables to the transaxle gearshift control assembly.
Connect the SJB electrical connector and the 2 harness electrical connectors.
Adjust the gearshift cables. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION AND CLUTCH - GENERAL INFORMATION article.
Install the floor console. For additional information, refer to INSTRUMENT PANEL article.
Install the RCM. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.
