Wheel Speed Sensor Ring - Rear: Notes

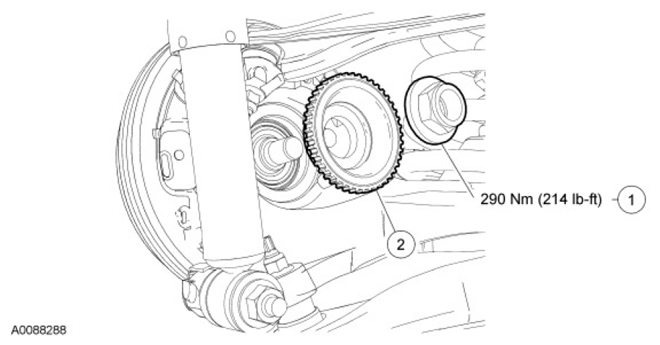

Fig 1: Rear Wheel Speed Sensor Ring Replacement Components With Torque Specifications
G07438924Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION

Item Part Number Description
1 W705967 Rear wheel hub nut
2 2C1869 Sensor ring
