Passenger Air Bag Module Connectors - C256

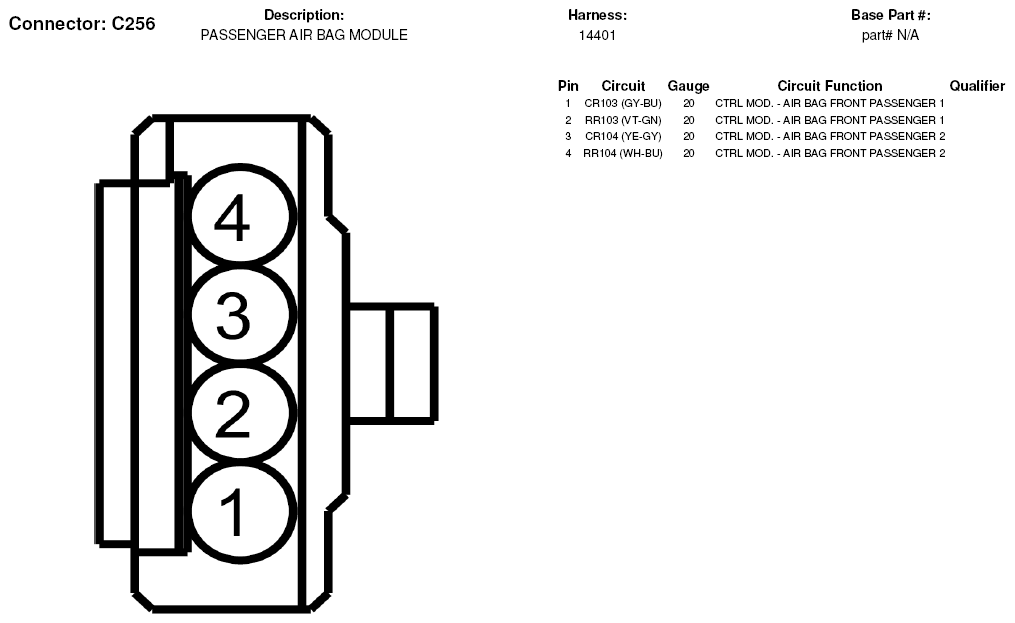

Fig 1: Passenger Air Bag Module Connector End View (C256)

G07327020

Courtesy of FORD MOTOR CO.
