Left Rear Window Adjust Switch Connector - C701

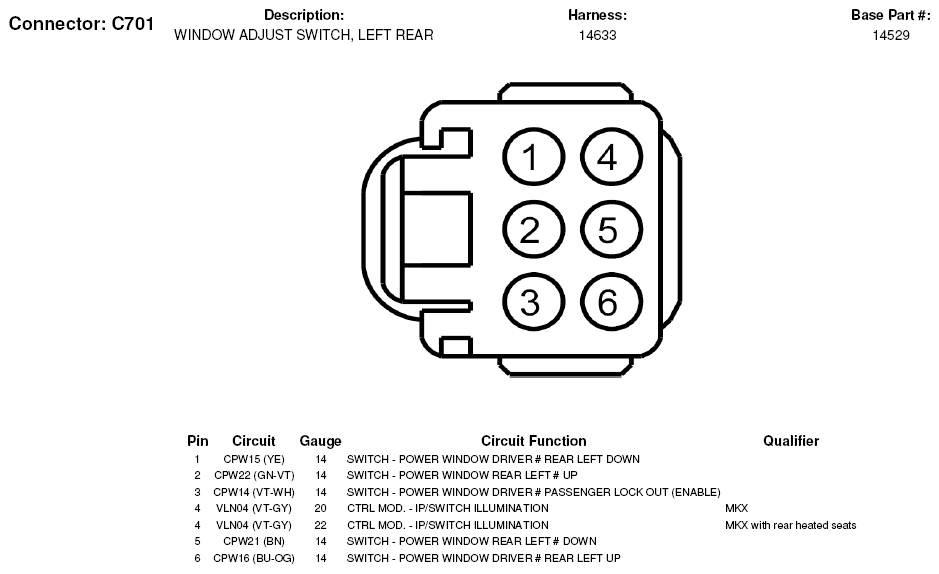

Fig 1: Left Rear Window Adjust Switch Connector End View (C701)

G07327118

Courtesy of FORD MOTOR CO.
