Console 2 Power Point Connector - C3064

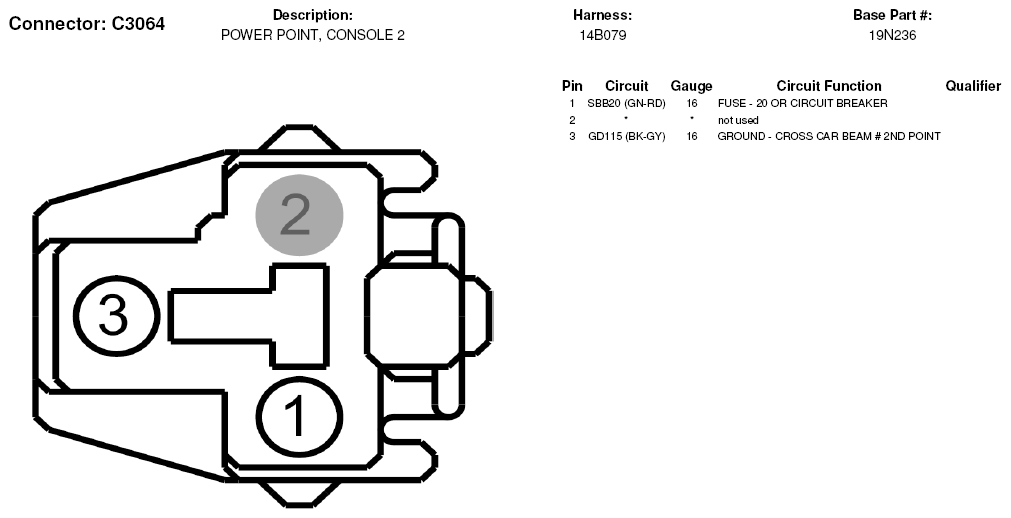

Fig 1: Console 2 Power Point Connector End View (C3064)

G07327237

Courtesy of FORD MOTOR CO.
