Windshield Wiper Motor Connector - C125

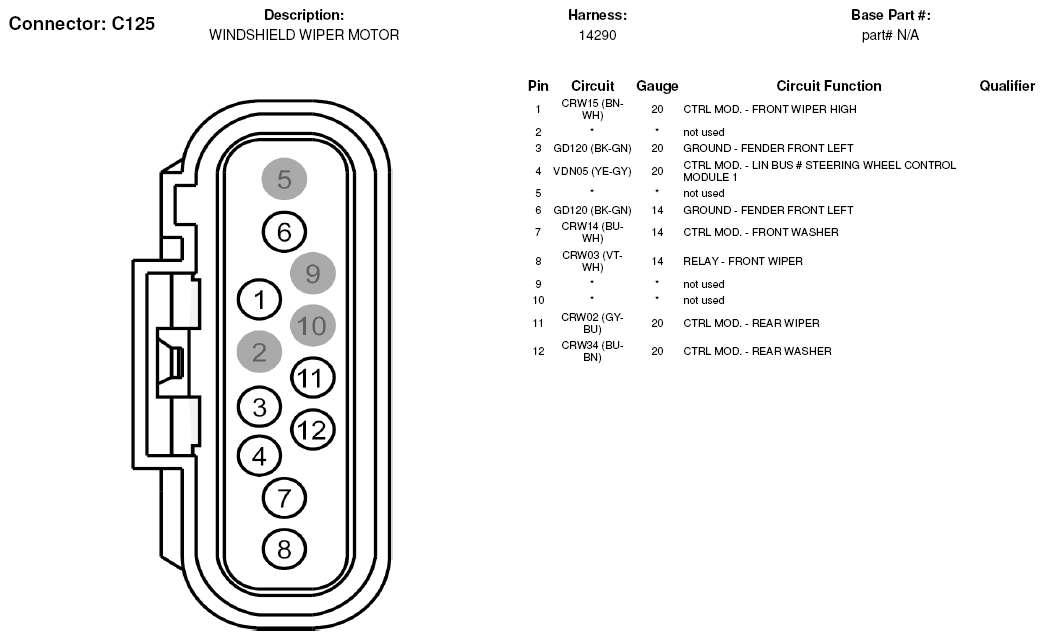

Fig 1: Windshield Wiper Motor Connector End View (C125)

G07326953

Courtesy of FORD MOTOR CO.
