Video Camera Connector - C4357
Video Camera Connector - C4357

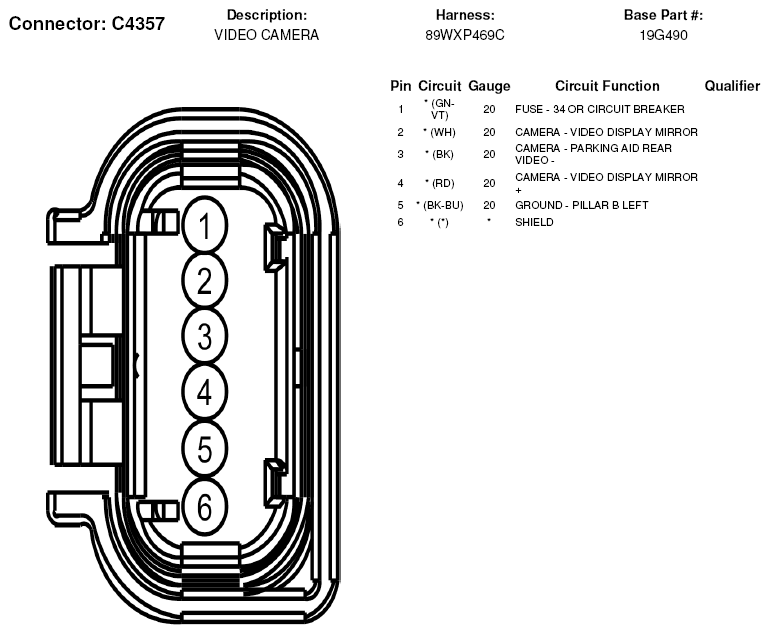

Fig 1: Video Camera Connector End View (C4357)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
