Roof Opening Panel Switch Connector - C9001

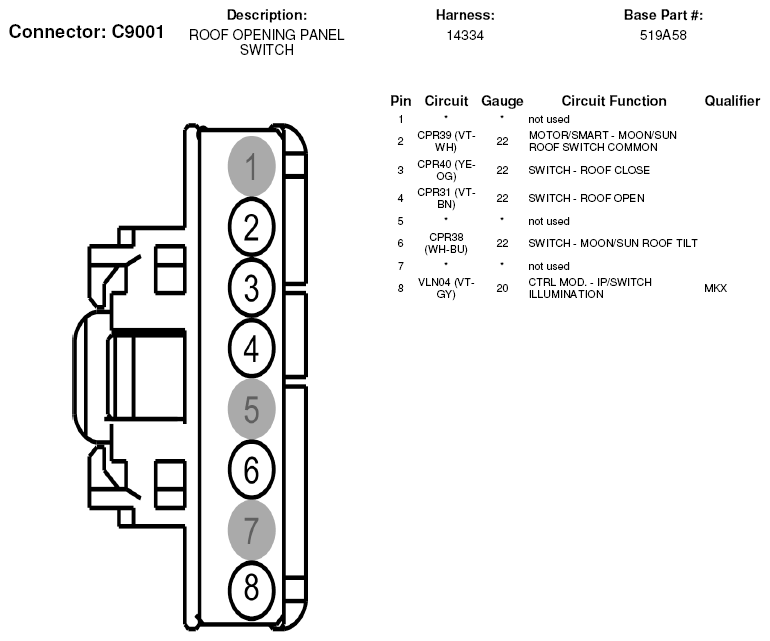

Fig 1: Roof Opening Panel Switch Connector End View (C9001)

G07327322

Courtesy of FORD MOTOR CO.
