Right Steering Wheel Switch Connector - C2999
Right Steering Wheel Switch Connector - C2999

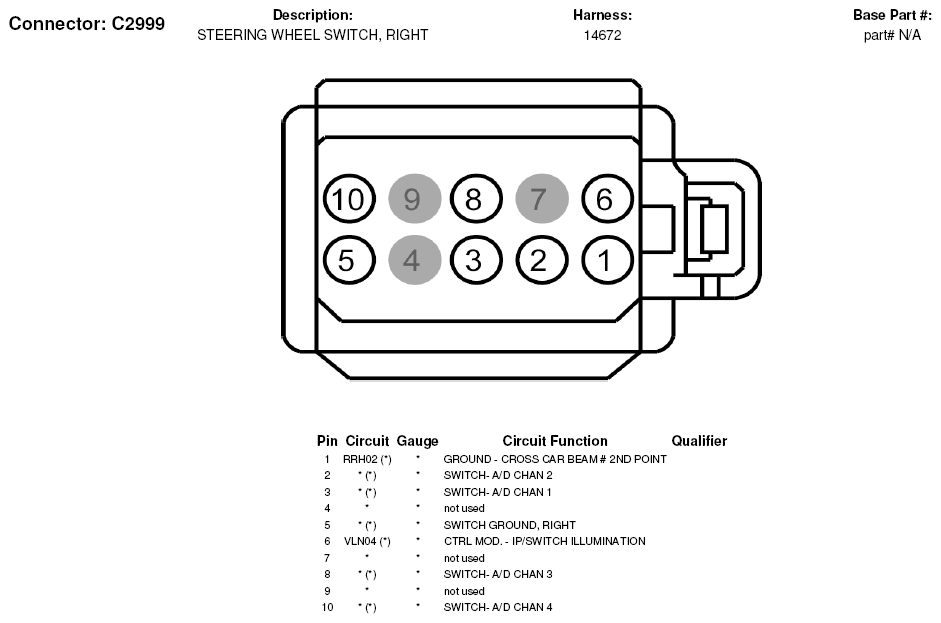

Fig 1: Right Steering Wheel Switch Connector End View (C2999)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
