Right Rear Lamp Assembly Connector - C417
Right Rear Lamp Assembly Connector - C417

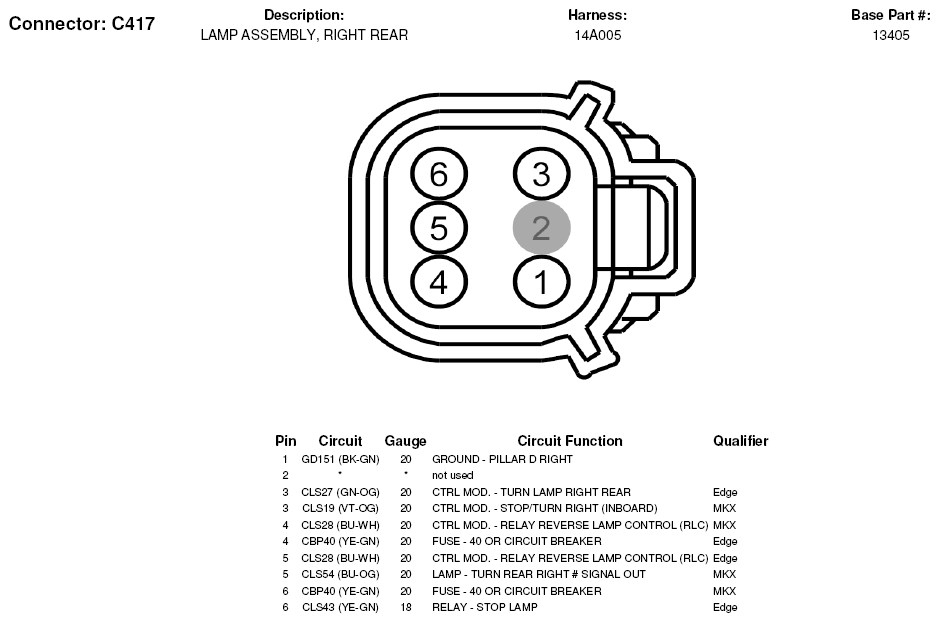

Fig 1: Right Rear Lamp Assembly Connector End View (C417)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
