Right Front Fog Lamp Connector - C162
Right Front Fog Lamp Connector - C162

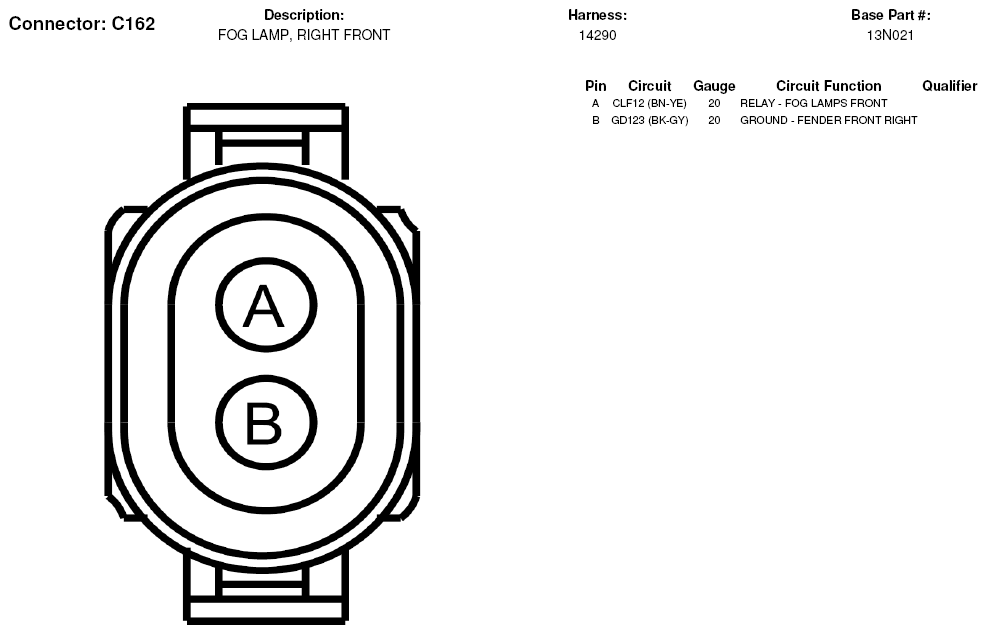

Fig 1: Right Front Fog Lamp Connector End View (C162)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
