Power Window Motor Passenger Side Front Connector - C646

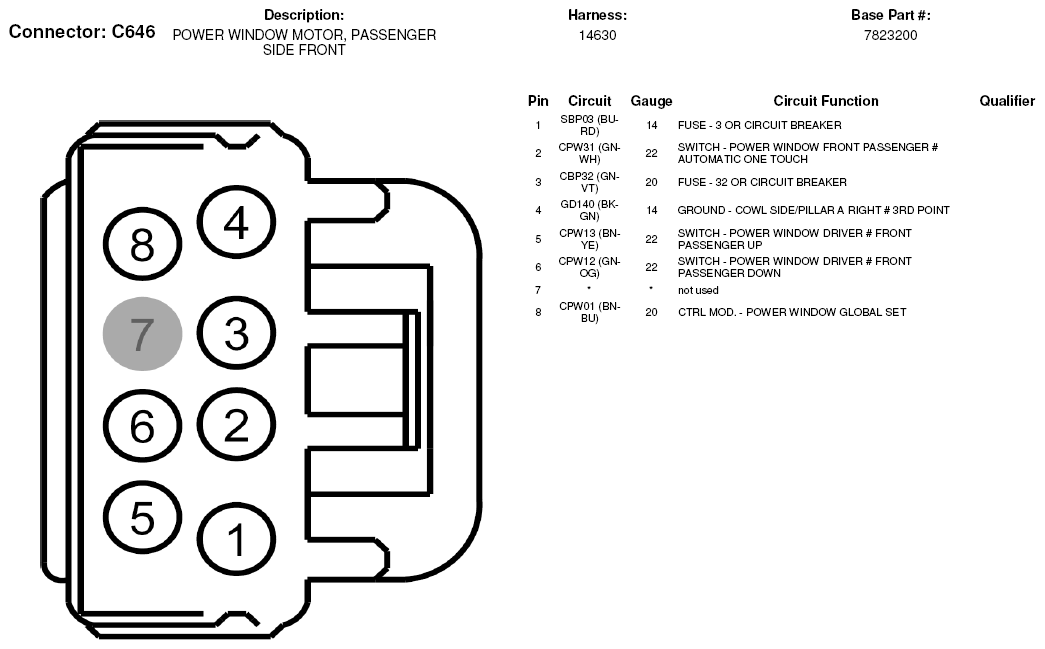

Fig 1: Power Window Motor Passenger Side Front Connector End View (C646)

G07327113

Courtesy of FORD MOTOR CO.
