License Lamp Connector - C4353
License Lamp Connector - C4353

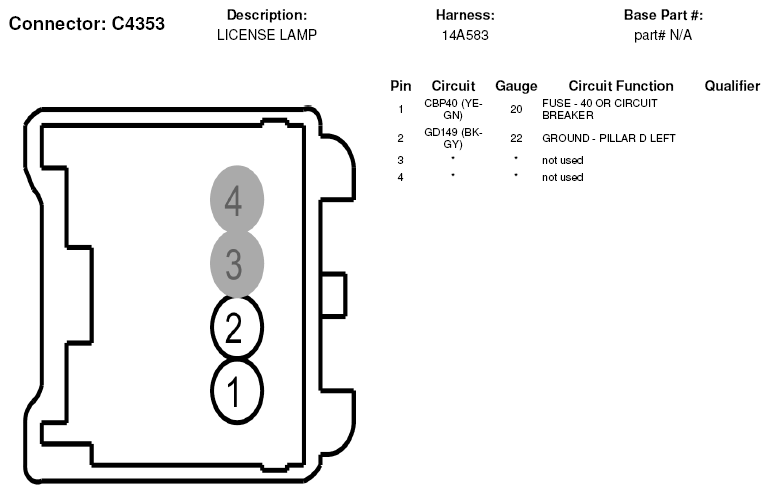

Fig 1: License Lamp Connector End View (C4353)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
