Left Steering Wheel Switch Connector - C2998

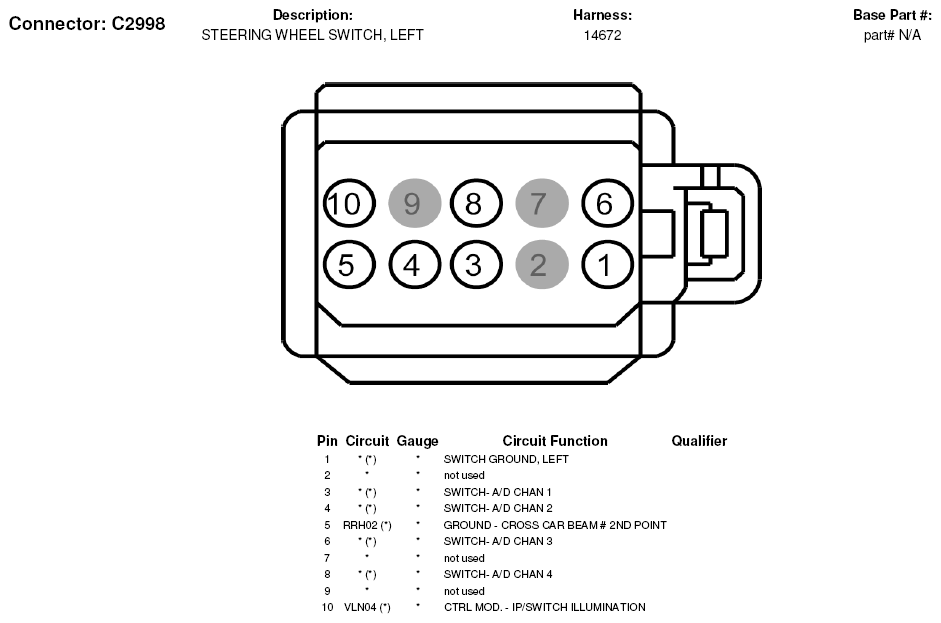

Fig 1: Left Steering Wheel Switch Connector End View (C2998)

G07327223

Courtesy of FORD MOTOR CO.
