Left Rear Power Window Motor Connector - C703

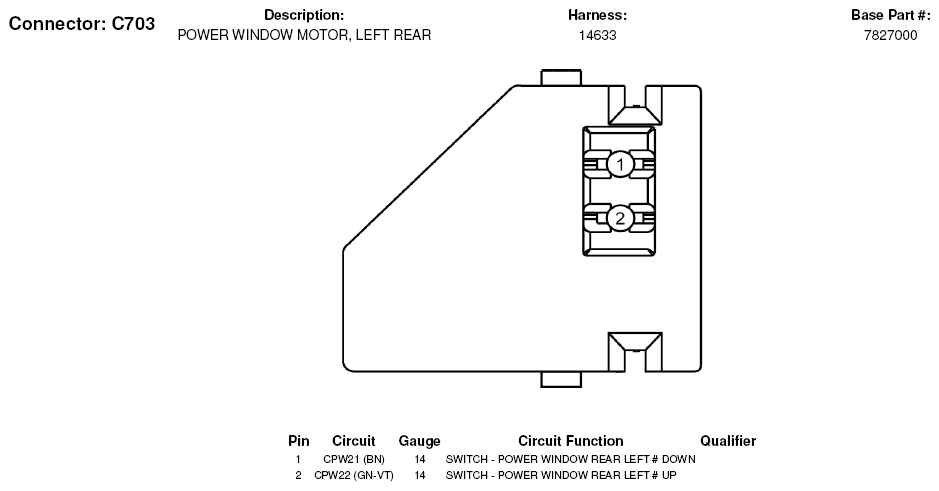

Fig 1: Left Rear Power Window Motor Connector End View (C703)

G07327120

Courtesy of FORD MOTOR CO.
