Left Paddle Shifter Connector - C2429

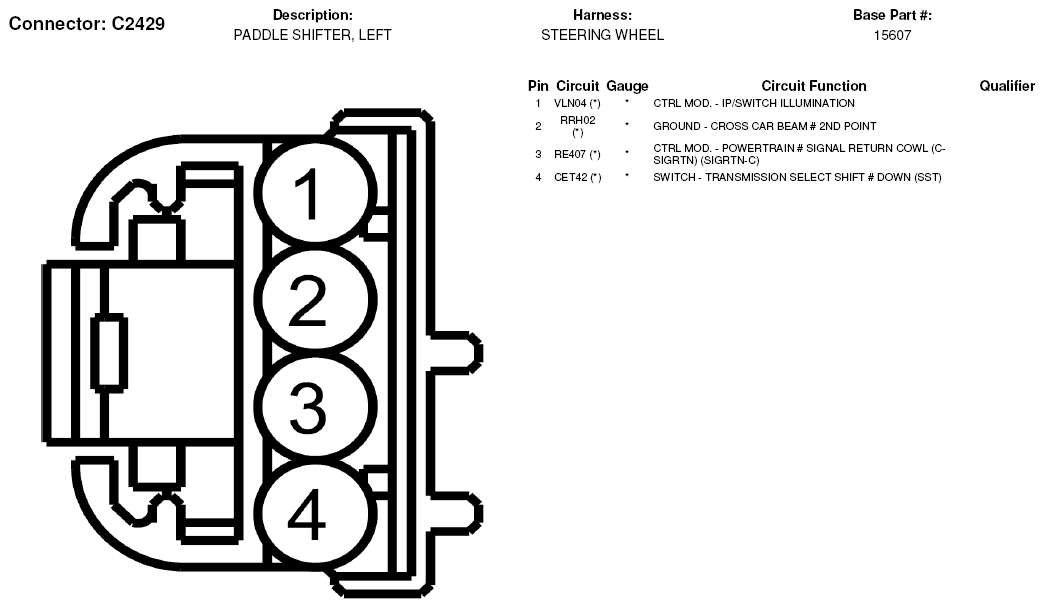

Fig 1: Left Paddle Shifter Connector End View (C2429)

G07327220

Courtesy of FORD MOTOR CO.
