Left License Plate Lamp Connector - C452

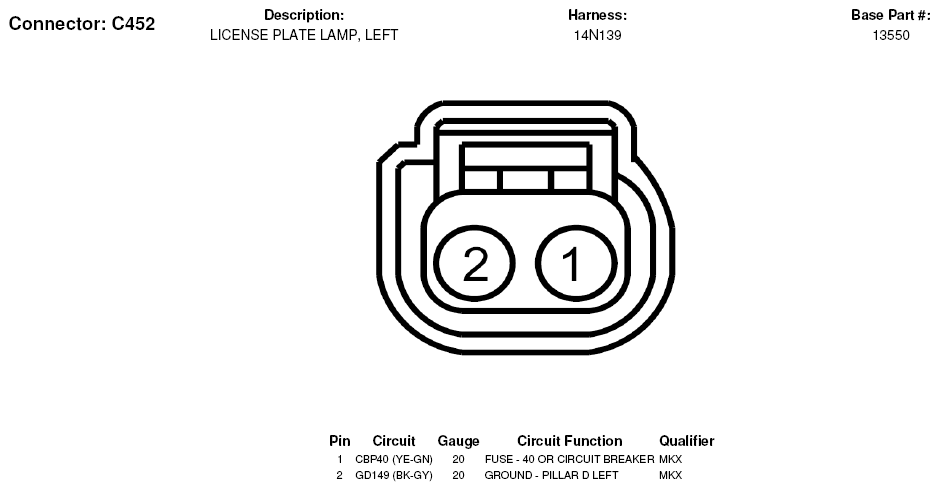

Fig 1: Left License Plate Lamp Connector End View (C452)

G07327072

Courtesy of FORD MOTOR CO.
