Left Front Impact Severity Sensor Connector - C1465

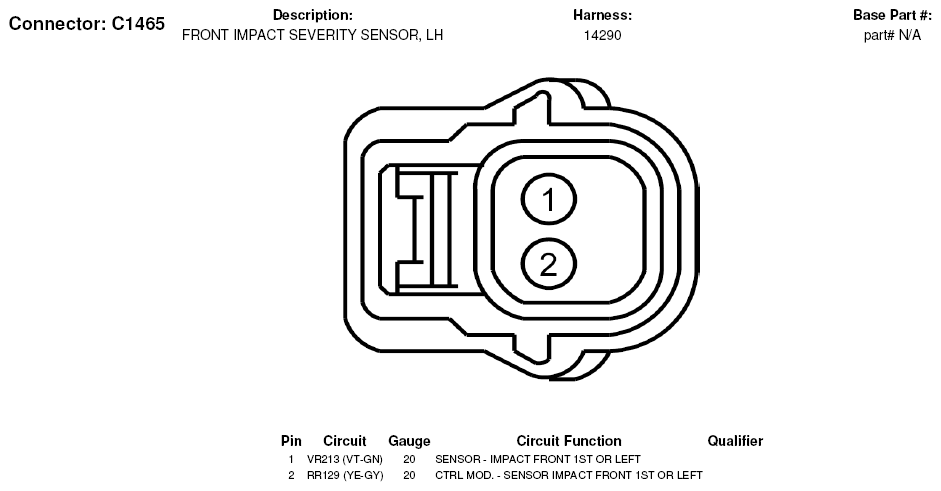

Fig 1: Left Front Impact Severity Sensor Connector End View (C1465)

G07327164

Courtesy of FORD MOTOR CO.
