Left Front Door Led Connector - C573

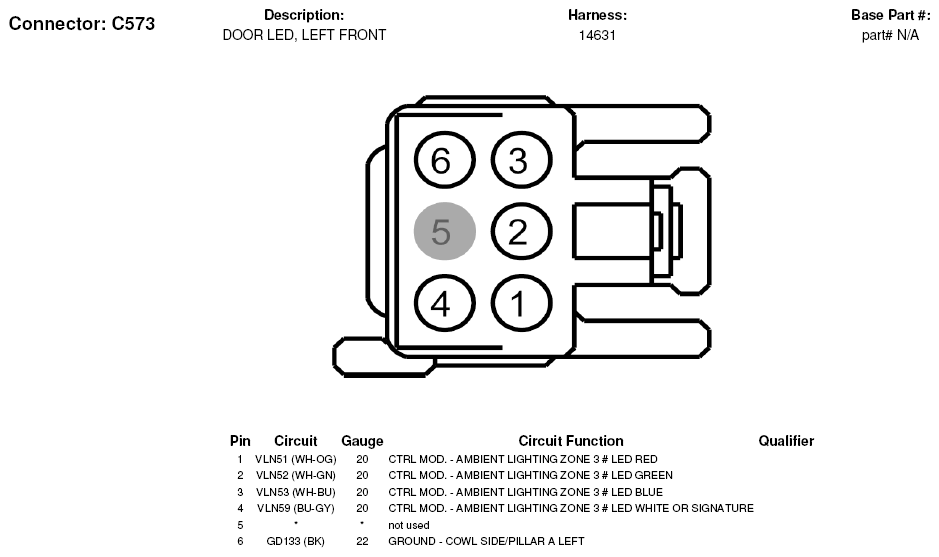

Fig 1: Left Front Door Led Connector End View (C573)

G07327098

Courtesy of FORD MOTOR CO.
