Instrument Panel Cluster Connector - C220

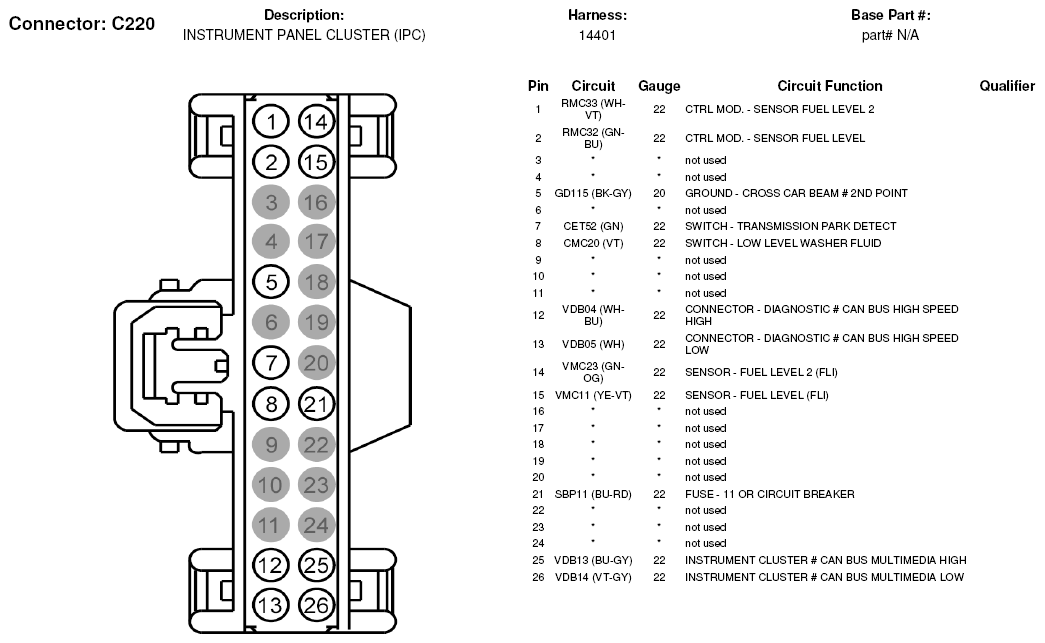

Fig 1: Instrument Panel Cluster Connector End View (C220)

G07327005

Courtesy of FORD MOTOR CO.
