Inner Left Parking Aid Sensor Connector - C4010

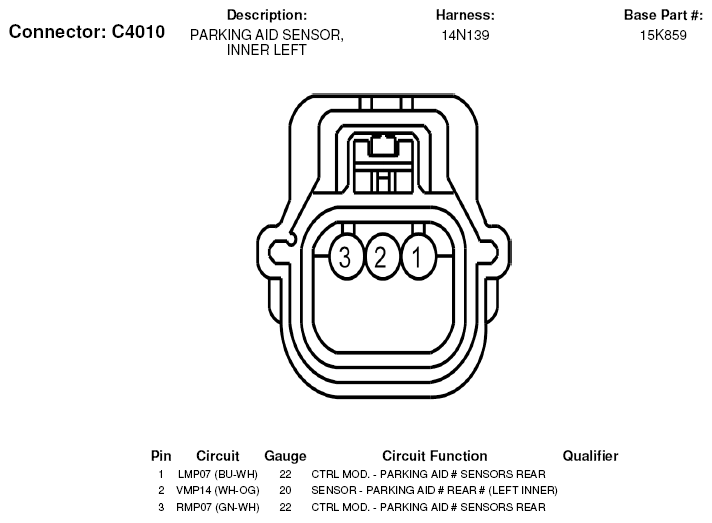

Fig 1: Inner Left Parking Aid Sensor Connector End View (C4010)

G07327282

Courtesy of FORD MOTOR CO.
