Fuel Tank Pressure Sensor Connector - C435

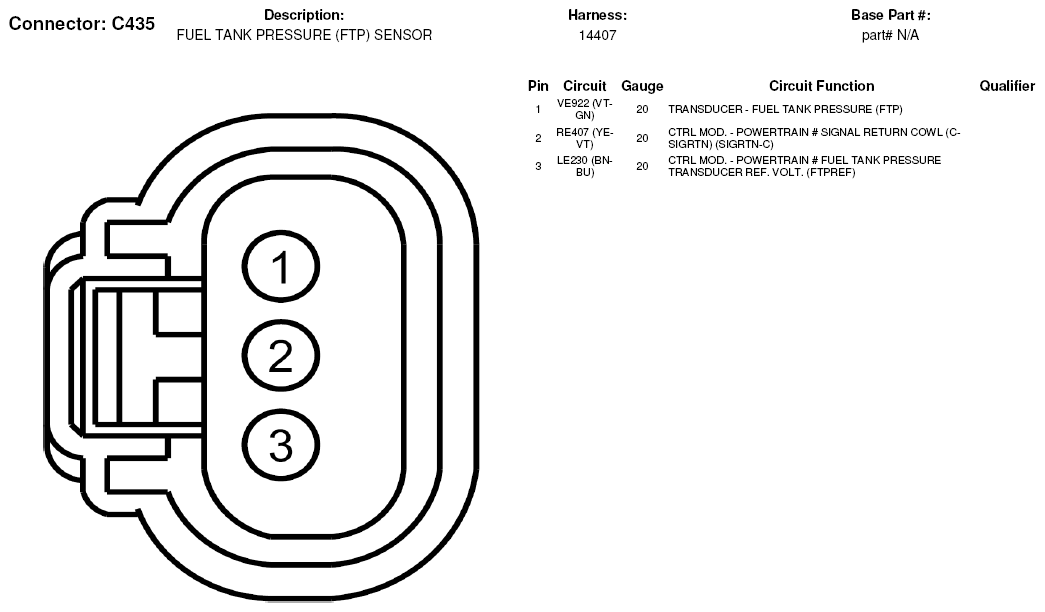

Fig 1: Fuel Tank Pressure Sensor Connector End View (C435)

G07327069

Courtesy of FORD MOTOR CO.
