Driver Side Front Power Window Motor Connector - C540

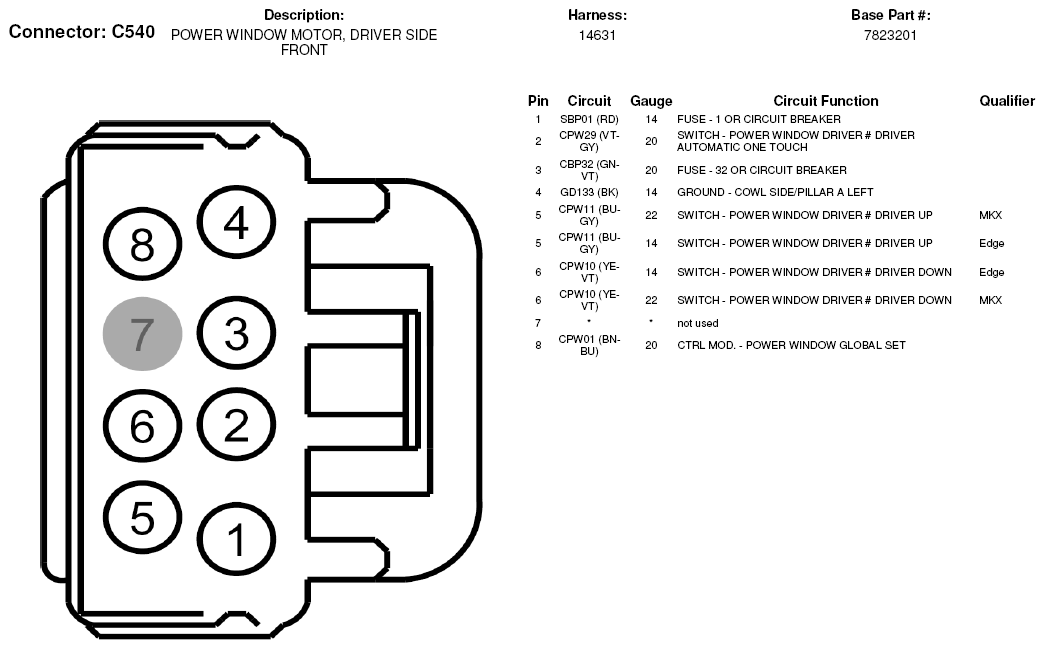

Fig 1: Driver Side Front Power Window Motor Connector End View (C540)

G07327093

Courtesy of FORD MOTOR CO.
