Driver Seat Backrest Motor Connector - C368

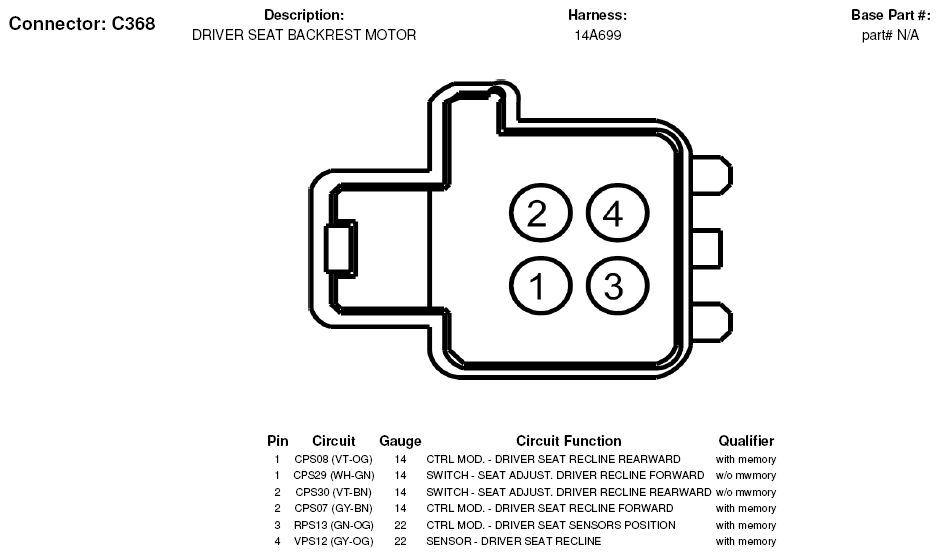

Fig 1: Driver Seat Backrest Motor Connector End View (C368)

G07327056

Courtesy of FORD MOTOR CO.
