Console Rear Power Point Connector - C3323

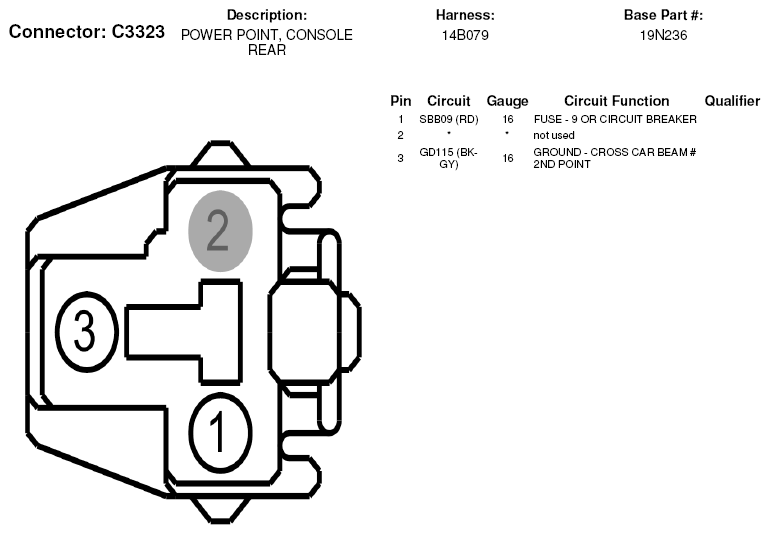

Fig 1: Console Rear Power Point Connector End View (C3323)

G07327263

Courtesy of FORD MOTOR CO.
