Brake Pedal Position Switch Connector - C2064

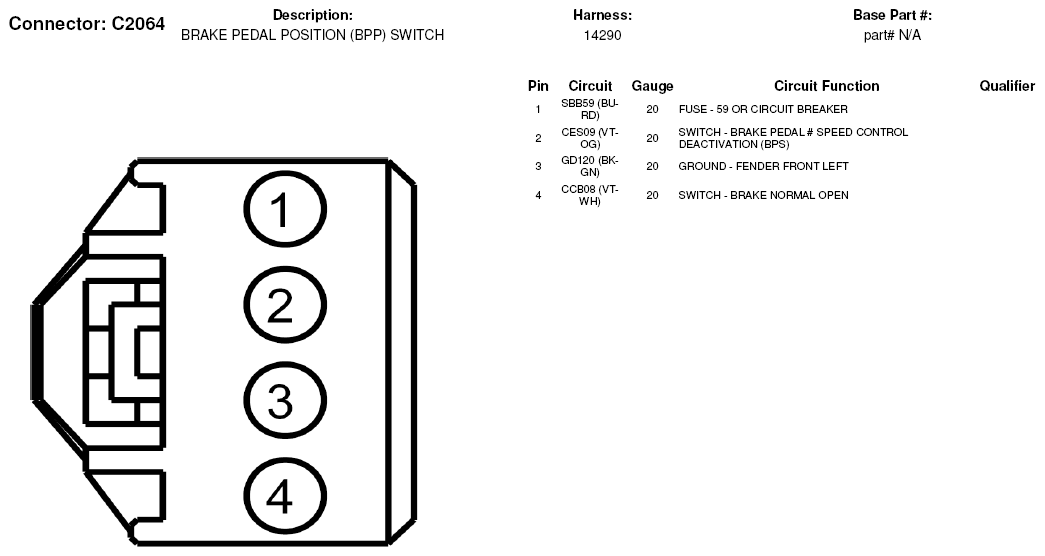

Fig 1: Brake Pedal Position Switch Connector End View (C2064)

G07327181

Courtesy of FORD MOTOR CO.
