Module Communication Network

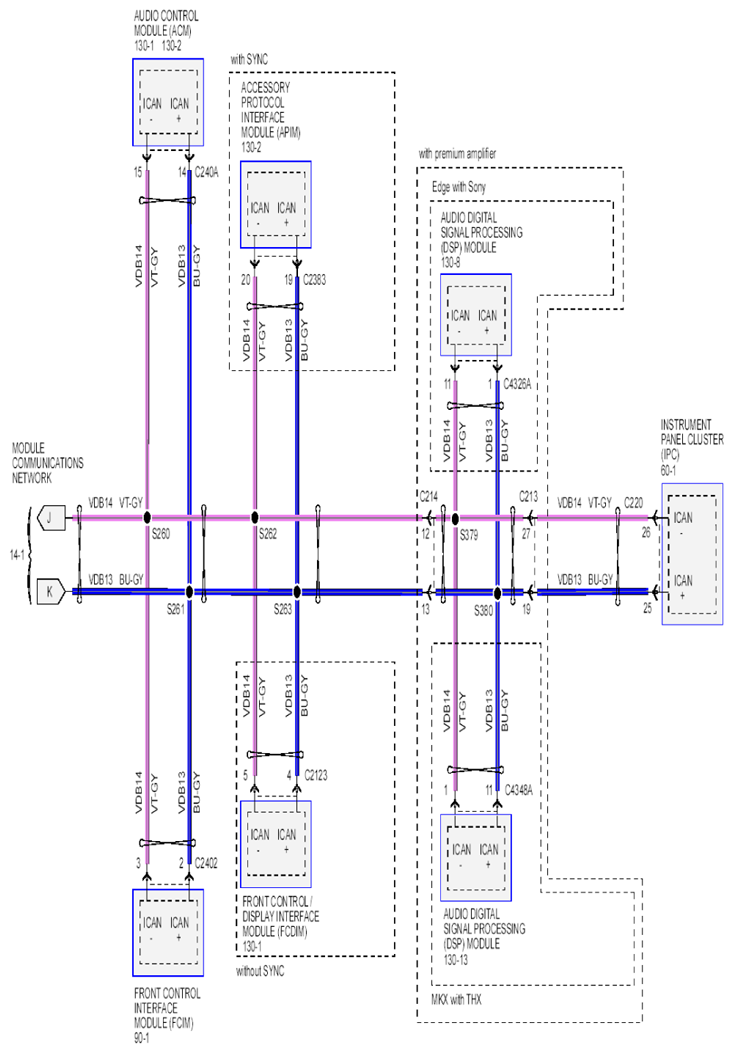

Fig 1: Module Communication Network Circuit Diagram (1 Of 7)

Courtesy of FORD MOTOR CO.

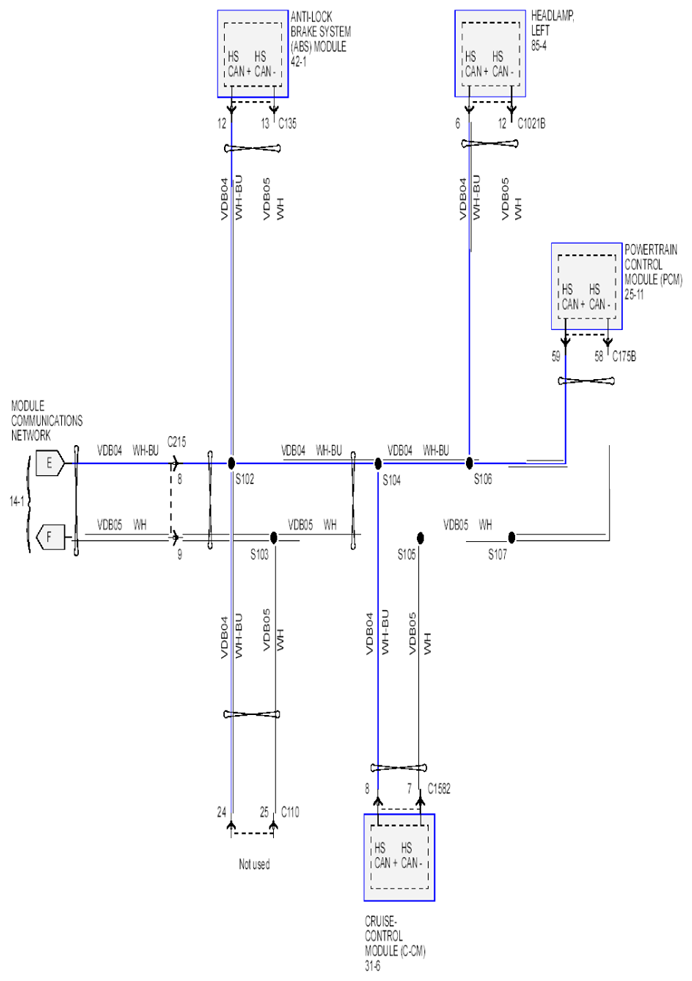

Fig 2: Module Communication Network Circuit Diagram (2 Of 7)

Courtesy of FORD MOTOR CO.

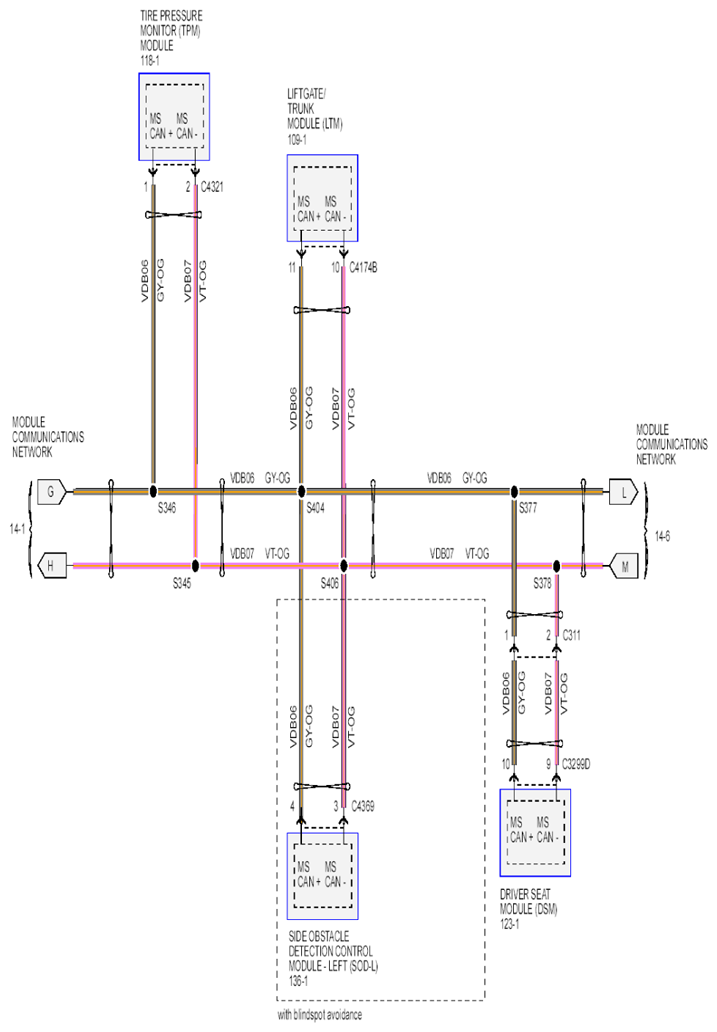

Fig 3: Module Communication Network Circuit Diagram (3 Of 7)

Courtesy of FORD MOTOR CO.

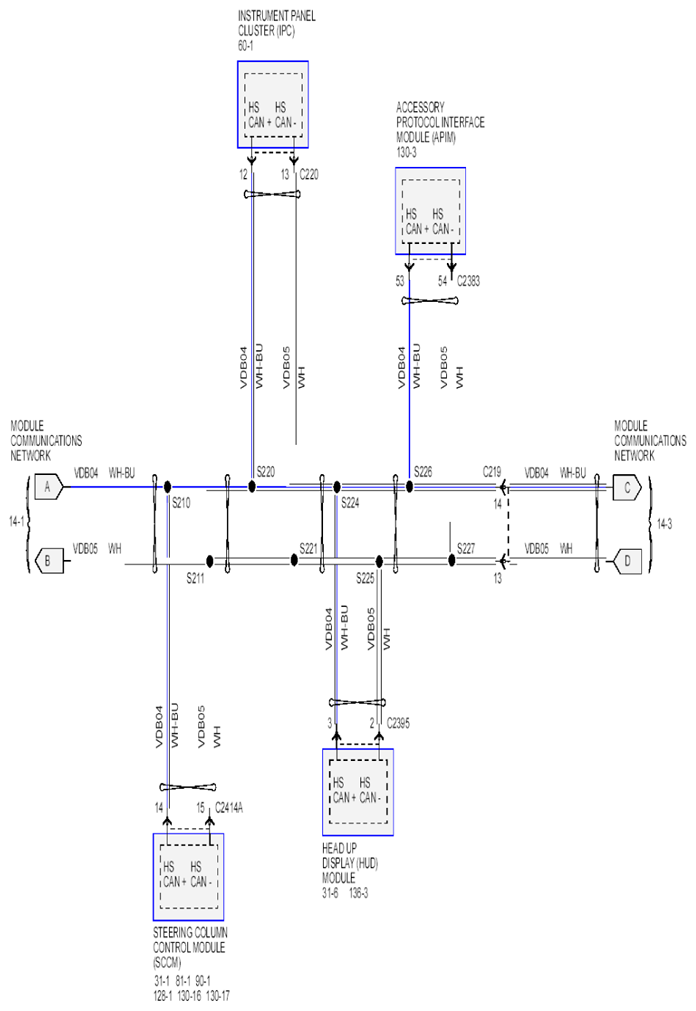

Fig 4: Module Communication Network Circuit Diagram (4 Of 7)

Courtesy of FORD MOTOR CO.

Fig 5: Module Communication Network Circuit Diagram (5 Of 7)

Courtesy of FORD MOTOR CO.

Fig 6: Module Communication Network Circuit Diagram (6 Of 7)

Courtesy of FORD MOTOR CO.

Fig 7: Module Communication Network Circuit Diagram (7 Of 7)

Courtesy of FORD MOTOR CO.
