Driver Seat Front Height Motor Connector - C382

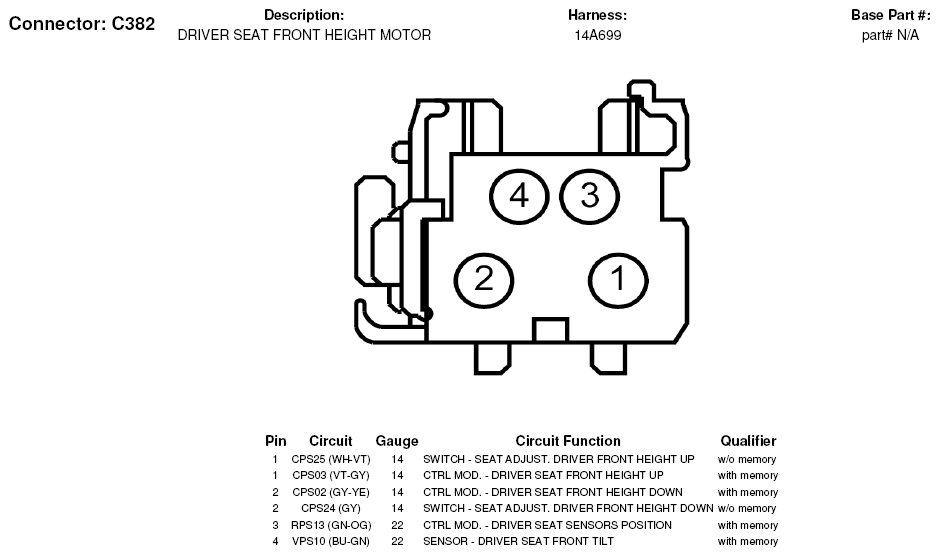

Fig 1: Driver Seat Front Height Motor Connector End View (C382)

G07327058

Courtesy of FORD MOTOR CO.
