Rear Disc Brake: Notes
WARNING: This page is about a different car, the 2014 Lincoln MKX and 2014 Ford Edge. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® High Temperature Nickel Anti-Seize Lubricant XL-2 |
- |
| Motorcraft® Metal Brake Parts Cleaner (US)/Motorcraft® Brake Parts Cleaner (Canada) PM-4-A or PM-4-B (US); CPM-4 (Canada) |
- |

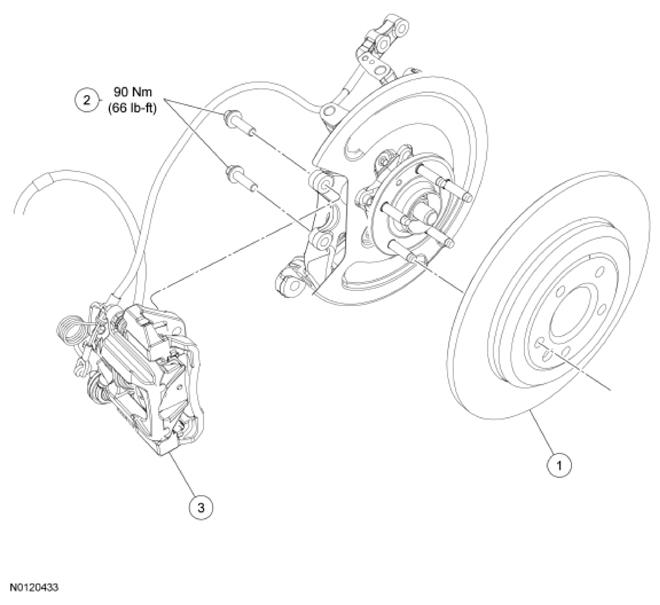

| Item | Part Number | Description |
|---|---|---|
| 1 | 2C026 | Brake disc |
| 2 | W711240 | Brake caliper anchor plate bolt (2 required) |
| 3 | - | Brake caliper and anchor plate assembly |
