Home >> Ford >> 2011 >> Edge SE, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Heated Steering Wheel Module Connector - C2406

Heated Steering Wheel Module Connector - C2406

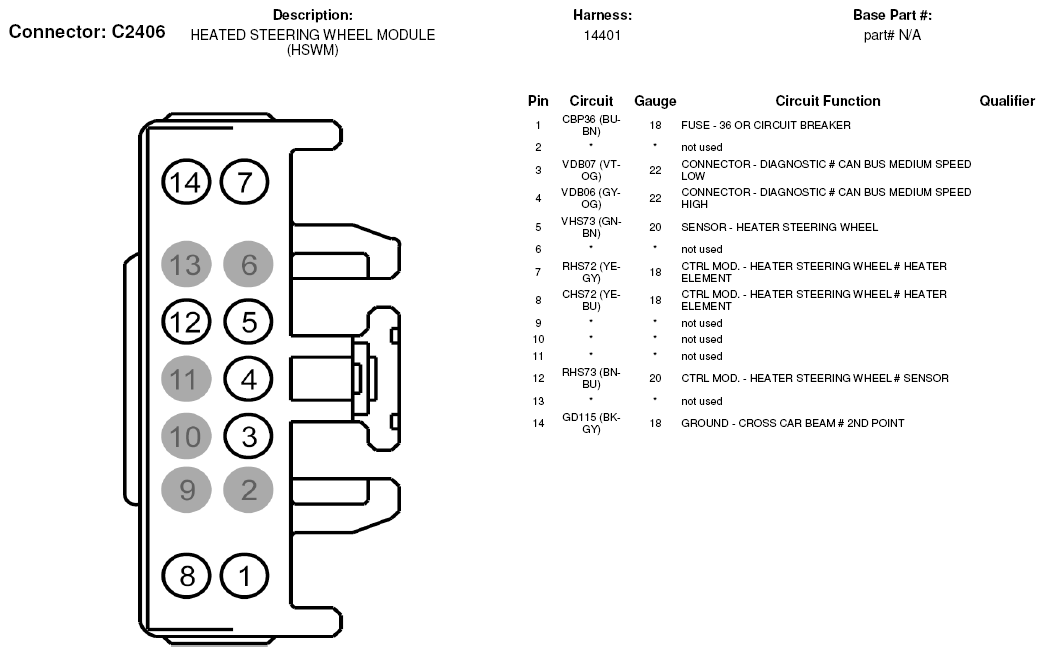

Fig 1: Heated Steering Wheel Module Connector End View (C2406)

G07327212

Courtesy of FORD MOTOR CO.
