Cooling Fan Module Connector - C1554

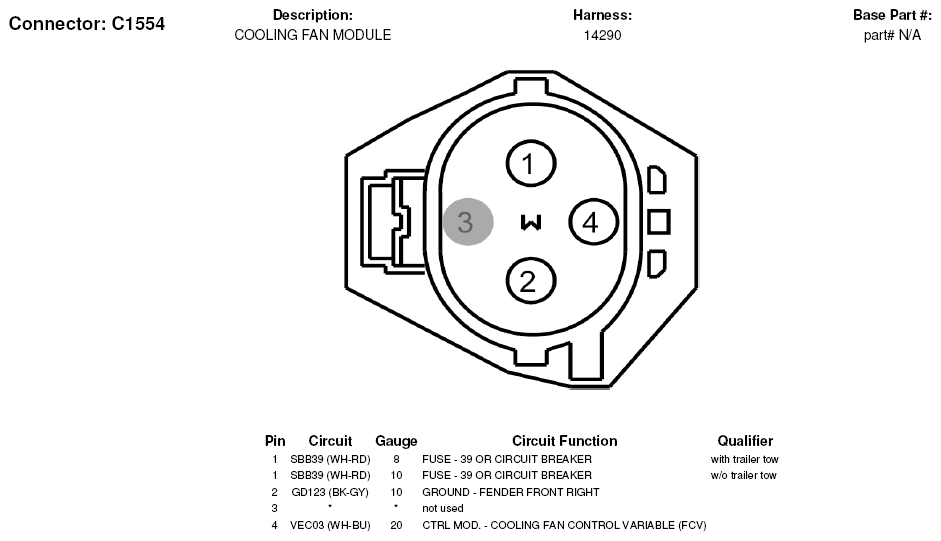

Fig 1: Cooling Fan Module Connector End View (C1554)

G07327166

Courtesy of FORD MOTOR CO.
