Battery Current Sensor Connector - C1646

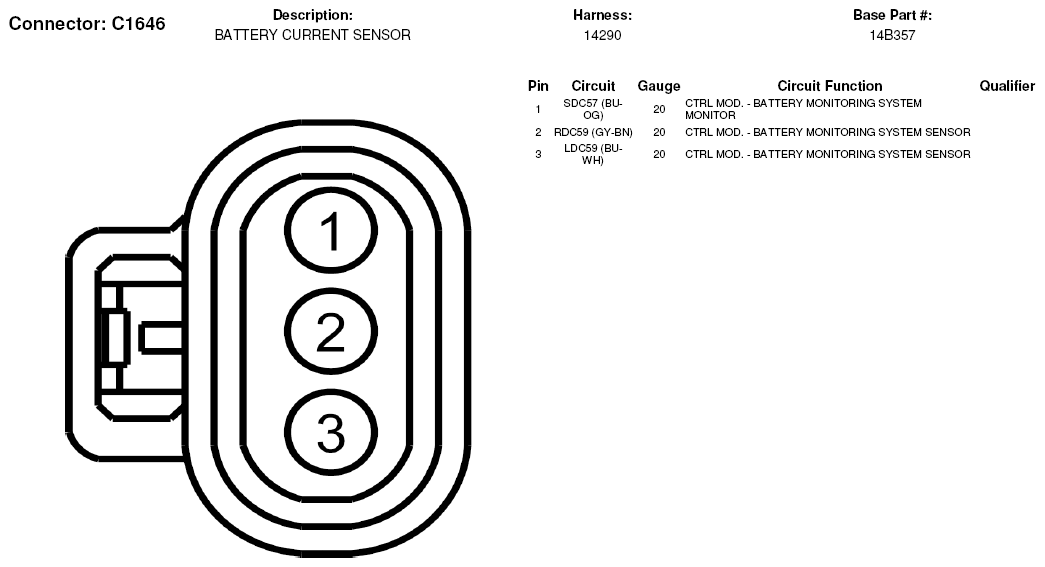

Fig 1: Battery Current Sensor Connector End View (C1646)

G07327177

Courtesy of FORD MOTOR CO.
