Side Obstacle Detection Control Module - Left Connector - C4369
Side Obstacle Detection Control Module - Left Connector - C4369

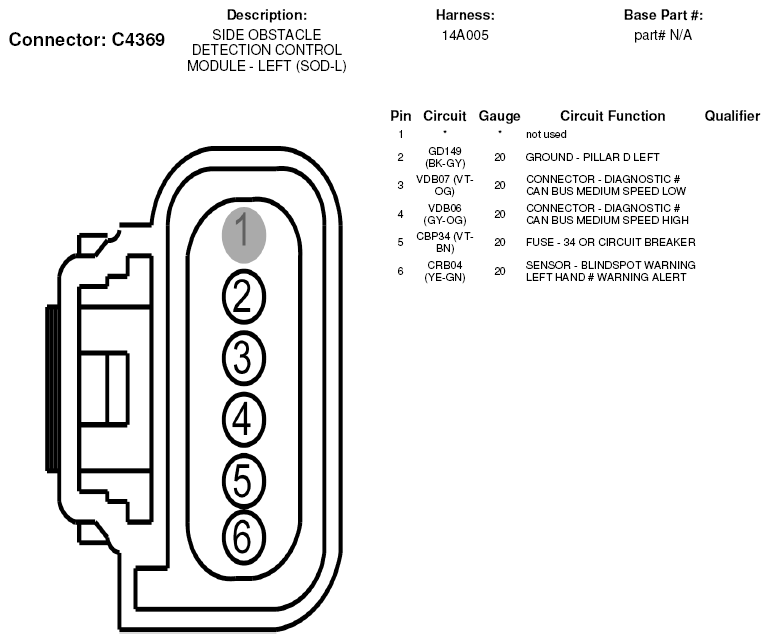

Fig 1: Side Obstacle Detection Control Module - Left Connector End View (C4369)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
