Home
>>
Ford
>>
2011
>>
Edge SE, AWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector Views
>>
Memory Set Switch Connector - C2094
Memory Set Switch Connector - C2094

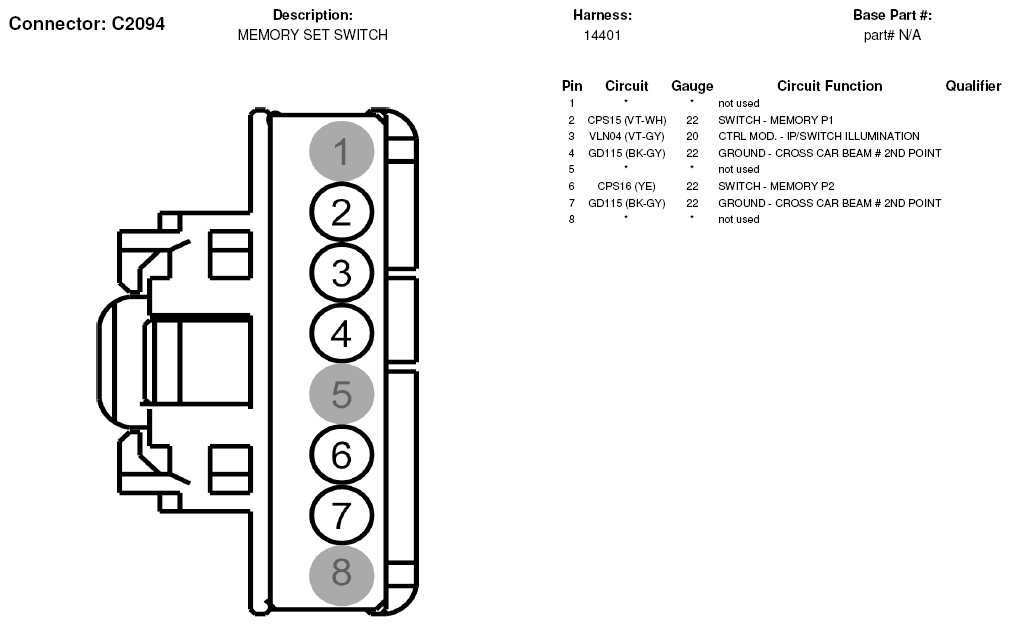

Fig 1: Memory Set Switch Connector End View (C2094)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
