Global Positioning System Module Connector - C2398

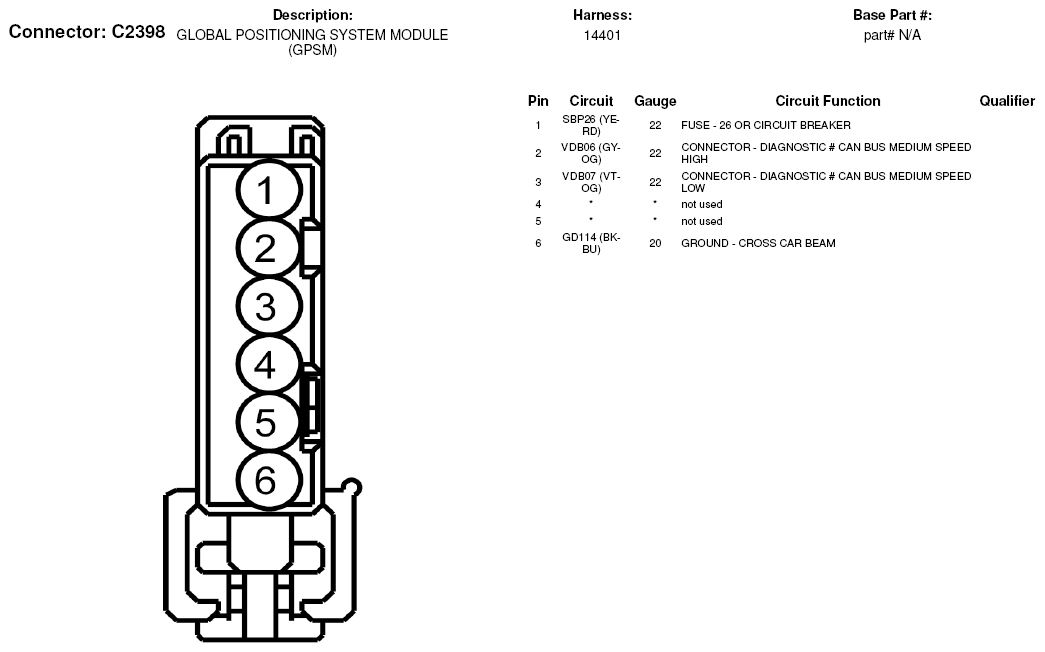

Fig 1: Global Positioning System Module Connector End View (C2398)

G07327210

Courtesy of FORD MOTOR CO.
