Driver Safety Canopy Module Connector - C9018

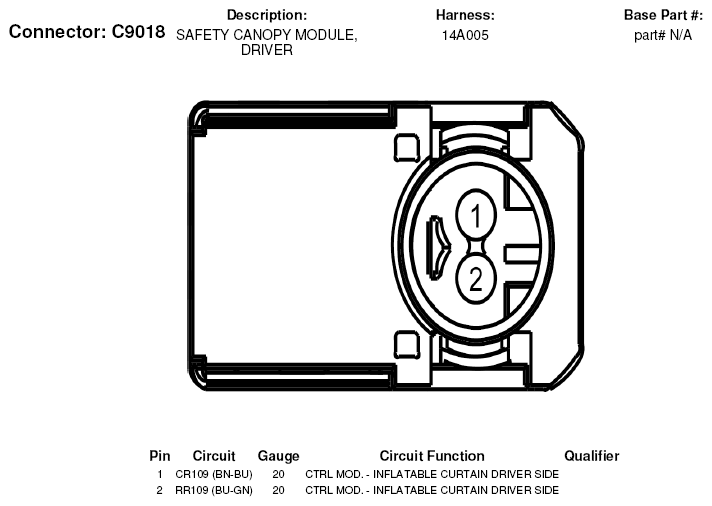

Fig 1: Driver Safety Canopy Module Connector End View (C9018)

G07327323

Courtesy of FORD MOTOR CO.
